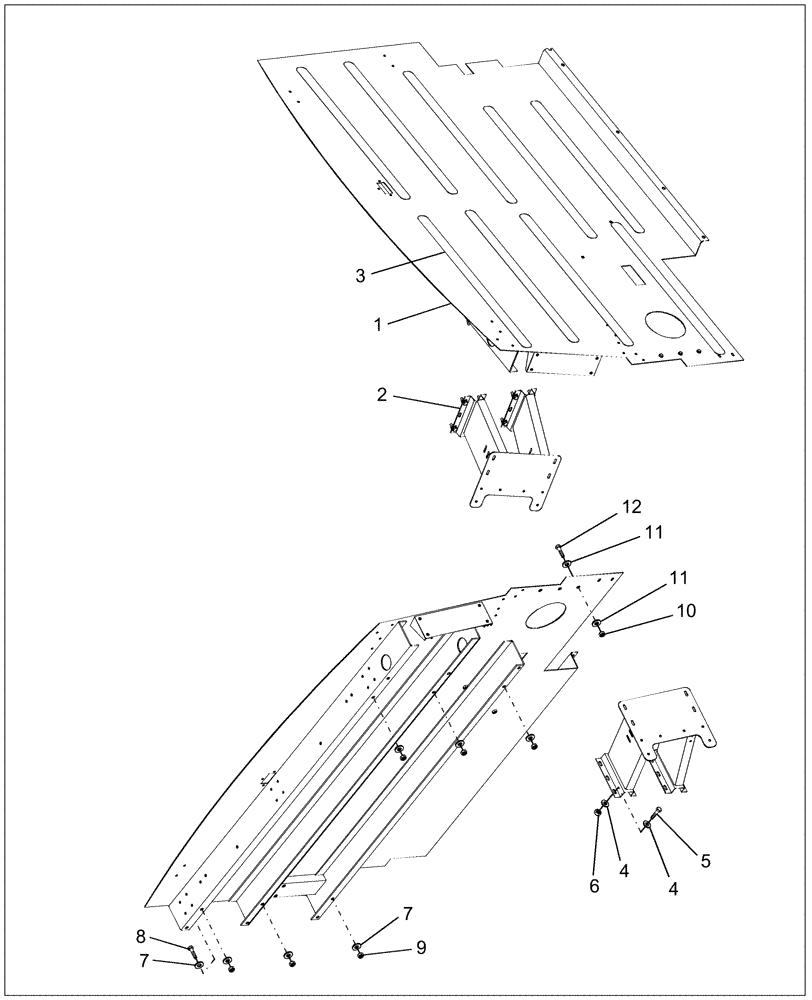

Запчасти Case IH AFX8010 (E.30.A.72[1]) - PLATFORM, REAR E - Body and Structure

1

86976706

PLATFORM

1шт.

2

86976820

SUPPORT

1шт.

3

9803755

ANTI-SKID STRIP

Safety Tape

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

6

100016

NUT,M10 x 1.5, Cl 8

8шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

9

9706685

NUT,M12 x 1.75, Cl 8

6шт.

10

9706690

NUT,M8 x 1.25, Cl 8

3шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.
