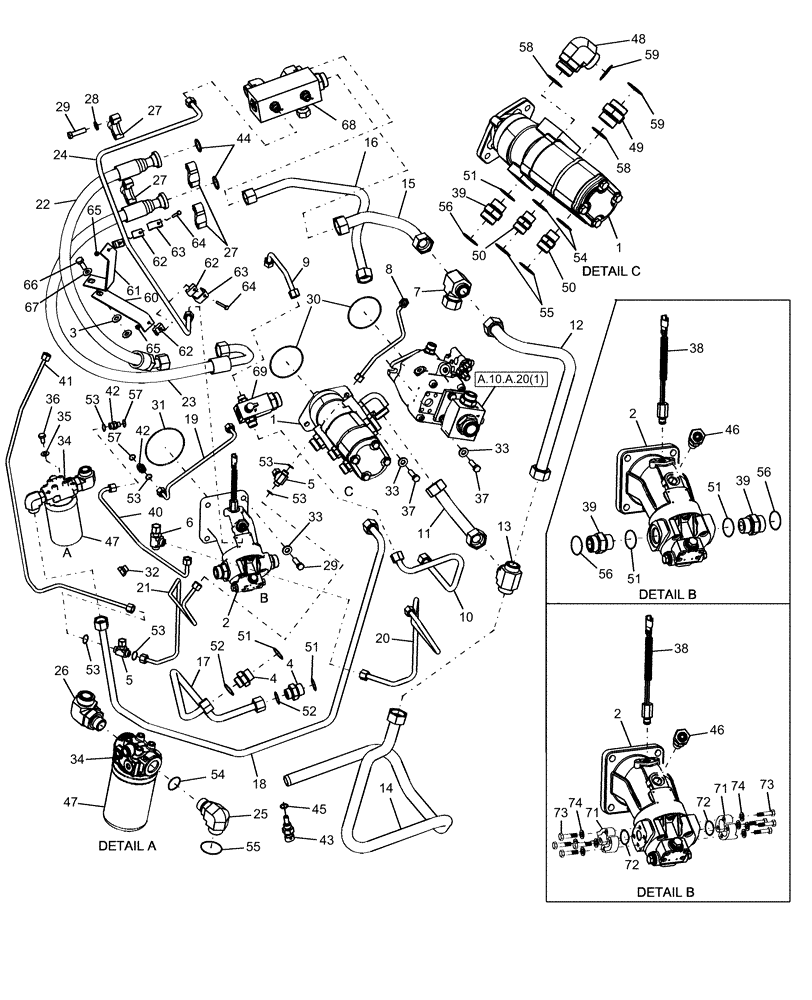

Запчасти Case IH AFX8010 (A.10.A.36[1]) - GENERAL HYDRAULIC A - Distribution Systems

1

86998057

HYDRAULIC PUMP

Triple Gear[2109383], BPIN HAJ105375, See Fig A.10.A.20[2]

1шт.

1

84273626R

REMAN-HYD PUMP

AFX8010 Before P.I.N. HAJ105375,

1шт.

1

84273626C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87284569

HYDRAULIC PUMP

Triple Gear(2991224), PIN HAJ105375 and after, See Fig A.10.A.20[2]

1шт.

1

84258982R

REMAN-HYD PUMP

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06), Reman for New P/N 87284569

1шт.

1

84258982C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86837121

HYDRAULIC MOTOR

Fitted Hoses

1шт.

2

87310111

MOTOR, HYDRAULIC,45.6CC

Clamped Hoses, Start Serial: HAJ106401

1шт.

2

87310111R

REMAN-HYD MOTOR

Clamped Hoses, Start Serial: HAJ106401

1шт.

2

87310111C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

4

86579683

HYD CONNECTOR,1-3/16"-12 ORFS x M33 x 2.0 ORB

2шт.

5

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

2шт.

6

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

7

86705424

TEE,1 11/16"-12 ORFS x 1 11/16"-12 Fem Sw Br

1шт.

8

86995863

HYD TUBE,0.375" OD

Reg. to Feeder Clutch from Manifold

1шт.

9

87106670

HYD TUBE

Charge to Rotor Pump

1шт.

10

86995878

HYD TUBE,0.625" OD

Charge to Propulsion Pump

1шт.

11

86995865

HYD TUBE,1.25" OD

Suction from Tee to Charge Pump

1шт.

12

86998291

HYD TUBE,32 mm OD x 194.2, 469.1 mm L

Suction from Tee to Lube Pump

1шт.

13

86705423

TEE

1шт.

14

86996000

HYD TUBE,1.25" OD

PTO Oil Pan Suction to Tee

1шт.

15

86995871

HYD TUBE,32 mm OD x 194.01, 58.22 mm L

Return from Drain Manifold

1шт.

16

86995870

HYD TUBE,1" OD

Ground Drive Pump Drain

1шт.

17

86995997

HYD TUBE,0.75" OD

Feeder Gearbox Drain

1шт.

18

86995882

HYD TUBE,0.75" OD

Lube to Filter, Serial Range: -HAJ105757

1шт.

With Lube Filter Ports Facing Left to Right

1шт.

18

87284931

HYD TUBE,0.75" OD

Lube to Filter, Start Serial: HAJ105758

1шт.

With Lube Filter Ports Facing Front to Back

1шт.

19

86995995

HYD TUBE,0.375" OD

Feeder Clutch Pressure

1шт.

20

86995885

HYD TUBE,0.50" OD

Feeder Clutch Lube Supply

1шт.

21

86995872

HYD TUBE,0.375" OD

Rotor Clutch Regulated Supply

1шт.

22

87108747

FLEXIBLE HOSE

Rotor Drive "B"

1шт.

22

87314312

FLEXIBLE HOSE

Rotor Drive "B" - Both Ends Clamped, Start Serial: HAJ106401

1шт.

23

87108746

FLEXIBLE HOSE,19mm ID x 1225mm L

Rotor Drive "A"

1шт.

23

87314311

FLEXIBLE HOSE,19mm ID x 1200mm L

Rotor Drive "A" - Both Ends Clamped, Start Serial: HAJ106401

1шт.

24

86995883

HYD TUBE,0.50" OD

Rotor Motor Case Drain

1шт.

25

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

26

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1шт.

27

86980732

CLAMP

Split Flange

4шт.

28

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

29

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

12шт.

30

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

2шт.

31

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

32

86589753

PLUG

Hex, M18 x 1.5, Years: -29-AUG-03

1шт.

32

87030025

PLUG,Hex, M18 x 1.5 ORB

, Start Year: 29-AUG-03

1шт.

33

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

34

86998689

HYDRAULIC OIL FILTER

PTO Lube

1шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

36

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

37

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

4шт.

38

87662557

SENSOR

Rotor Motor Speed

1шт.

39

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

3шт.

40

86995994

HYD TUBE,0.375" OD

Rotor Clutch Pressure

1шт.

41

86995887

HYD TUBE,0.375" OD

Clutch pressure Supply to UNL

1шт.

42

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

2шт.

43

86571273

SENSOR

Hydraulic Oil Temperature, Years: -29-AUG-03

1шт.

44

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

45

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

, Years: -29-AUG-03

1шт.

46

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

47

294721A1

HYDRAULIC OIL FILTER

Element

1шт.

48

86579700

ELBOW,90 Degree, 1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

49

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

50

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

51

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

5шт.

52

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

53

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

54

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

55

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

56

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

57

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

58

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

59

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

60

87324916

BRACKET

Mount to PTO Gearbox, was 87281774

1шт.

61

87324918

BRACKET

Mount to PTO Gearbox, was 87281776

1шт.

62

433008

CLAMP

4шт.

63

442340

SUPPORT

2шт.

64

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

65

353308

NUT,M6 x 1.0, Cl 8

2шт.

66

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

67

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

68

87108152

MANIFOLD

Drain, See Fig A.12.A.36

1шт.

69

87282545

MANIFOLD

Pressure Control, See Fig A.12.A.19

1шт.

69

87553802

VALVE

Pressure Control, See Fig A.12.A.19

1шт.

70

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

71

86980731

CLAMP

4шт.

72

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

73

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

74

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.
