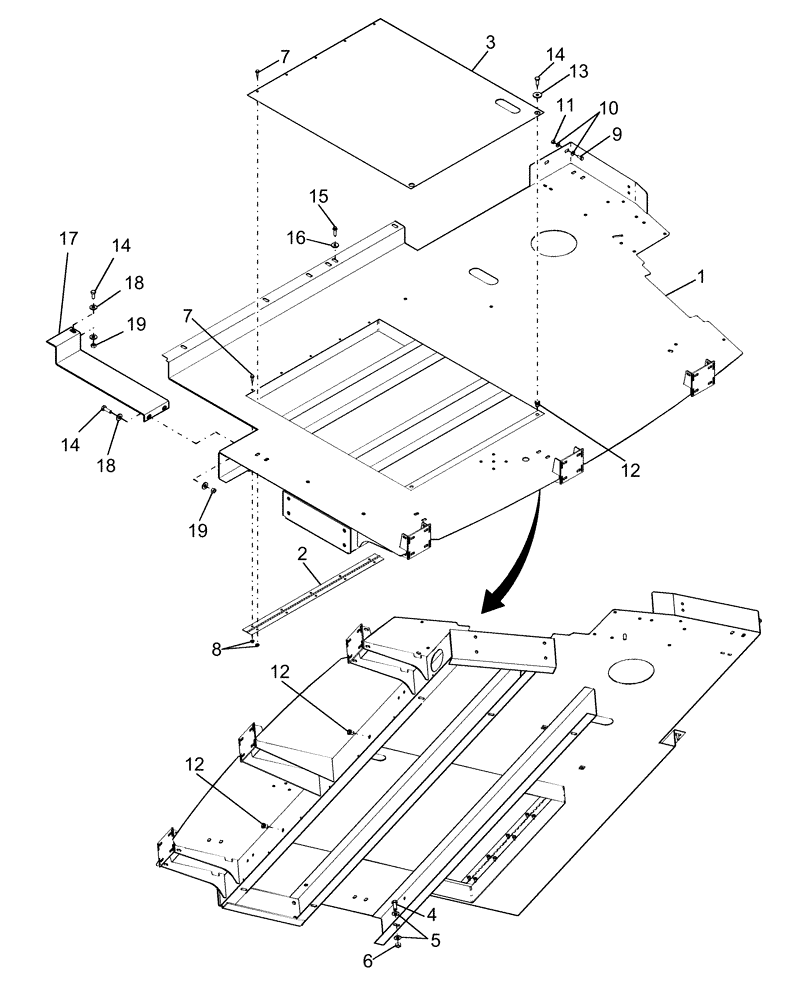

Запчасти Case IH AFX8010 (E.30.A.70[1]) - PLATFORM, ENGINE SERVICE E - Body and Structure

1

87281280

PLATFORM

1шт.

2

87107368

HINGE

1шт.

3

87106860

PANEL

Access

1шт.

4

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

6

9706685

NUT,M12 x 1.75, Cl 8

6шт.

7

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

10шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

10шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

11

9706690

NUT,M8 x 1.25, Cl 8

4шт.

12

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

10 mm Well

4шт.

13

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

15

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

3шт.

16

140041

WASHER,M8 x 28mm OD x 3mm Thk

3шт.

17

87107744

PLATE

1шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

19

100016

NUT,M10 x 1.5, Cl 8

3шт.
