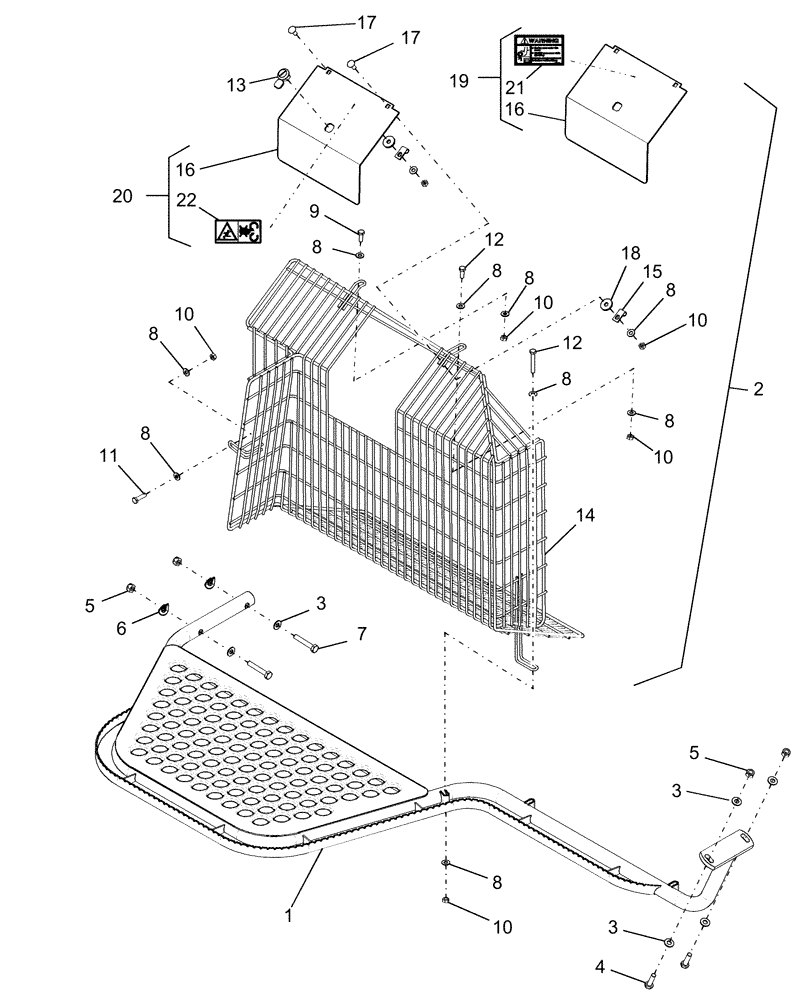

Запчасти Case IH AFX8010 (E.20.A.73.71[3]) - SHIELDS, LOWER, R.H. E - Body and Structure

1

87283675

PLATFORM

1шт.

2

87284191

SHIELD

Cleaning Fan, RH, NA

1шт.

2

87284192

SHIELD

Cleaning Fan, RH - Includes Ref. 13

1шт.

Europe Only

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

6

379401

WASHER,11mm ID x 30mm OD

2шт.

7

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

9

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

6шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

13

143347A1

LATCH

Shield

1шт.

Europe Only

1шт.

14

87283171

SHIELD

Rear, RH

1шт.

15

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

87318426

SHIELD

Door

1шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

19

87323909

SHIELD

Includes Decal P/N 86626958

1шт.

20

87323910

SHIELD

Includes Decal P/N 84011345

1шт.

Europe Only

1шт.

21

86626958

WARNING DECAL

Safety, NA

1шт.

22

84011345

DECAL

Safety

1шт.

Europe Only

1шт.
