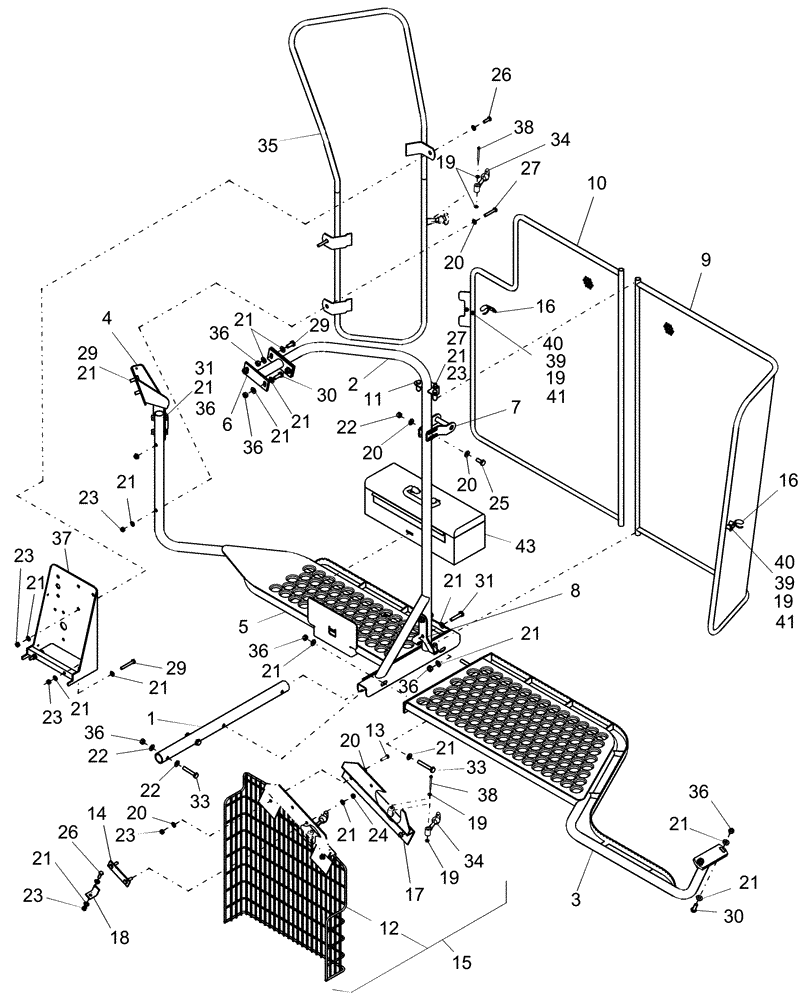

Запчасти Case IH AFX8010 (E.20.A.73.71[2]) - SHIELDS, LOWER, L.H. E - Body and Structure

1

86976334

TUBE,39.69 mm OD x 650 mm L

LH Lower Shields

1шт.

2

86998284

TUBE

LH Lower Shields

1шт.

3

87283370

PLATFORM

1шт.

4

86623051

SUPPORT

1шт.

5

87281169

PLATFORM

1шт.

6

86999896

SUPPORT

1шт.

7

86638313

BRACKET

, Years: -15-AUG-03

1шт.

7

87282197

BRACKET

, Start Year: 15-AUG-03

1шт.

8

86638375

BRACKET

Supporting

1шт.

9

87510550

SHIELD

Includes Ref. 44 & 45

1шт.

10

87510549

SHIELD

Includes Ref. 44

1шт.

11

86998278

BRACKET

1шт.

12

86998505

SHIELD

1шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

86998570

PLATE

Mounting

1шт.

15

86976678

SHIELD

Complete, Includes Ref. 17, 34 and Hardware

1шт.

16

86975624

LATCH HOOK

2шт.

17

86998803

BRACKET

1шт.

18

86999136

BRACKET

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Years: -15-AUG-03

12шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Start Year: 15-AUG-03

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

379401

WASHER,11mm ID x 30mm OD

Washer

6шт.

22

9706755

NUT,M6, Cl 8

, Years: -15-AUG-03

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

1шт.

24

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

2шт.

25

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

, Years: -15-AUG-03

2шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

27

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

28

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

, Years: -15-AUG-03

2шт.

29

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

30

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

31

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

32

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

33

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

33

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

2шт.

34

494307C1

LATCH

2шт.

35

87107459

SHIELD

1шт.

36

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

36

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

37

87280298

SHIELD

, Years: -15-AUG-03

1шт.

38

87400

COTTER PIN,3/16" x 2"

2шт.

39

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

3шт.

40

86975625

SPACER

2шт.

41

86508813

NUT,M5, Cl 8

4шт.

42

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

1шт.

43

87280324

TOOL BOX

1шт.

44

84011345

DECAL

Safety - Not Shown

2шт.

45

84432906

DECAL

Not Shown

1шт.
