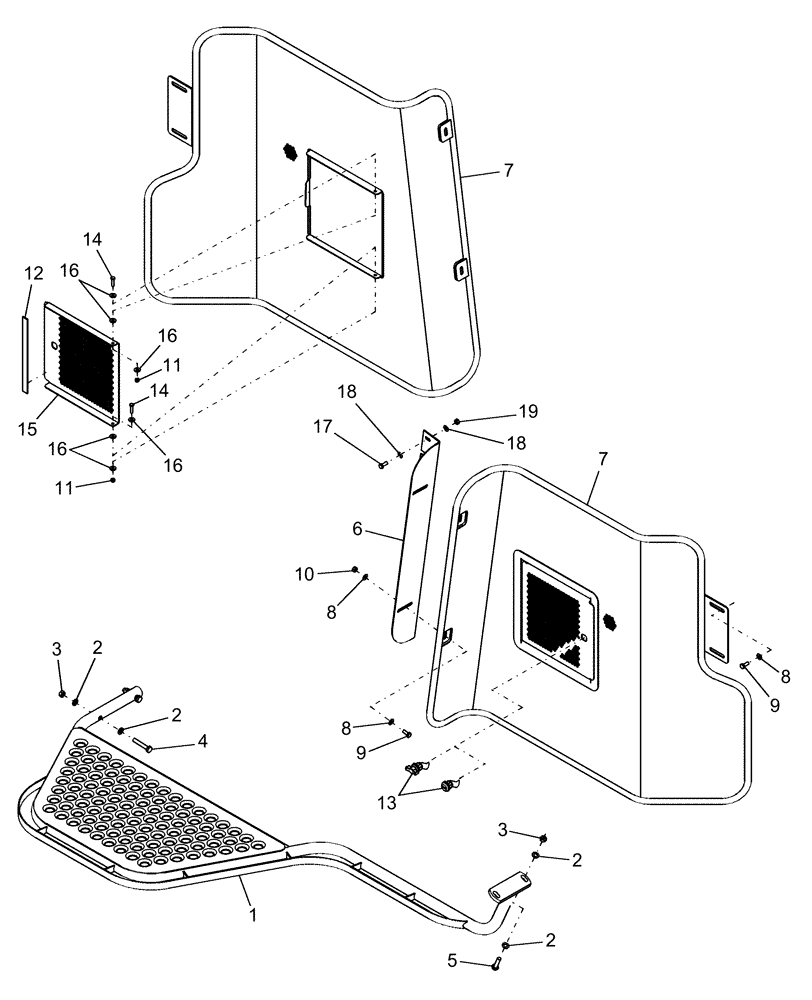

Запчасти Case IH AFX8010 (E.20.A.73.71[1]) - SHIELD, LOWER, R.H. E - Body and Structure

1

87283675

PLATFORM

1шт.

2

9820489

WASHER

M10

8шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

4

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

5

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

6

87108313

BRACKET

1шт.

7

87108203

SHIELD

Cleaning Fan

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

9706690

NUT,M8 x 1.25, Cl 8

2шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

87108414

SEAL

1шт.

13

87017720

LATCH

Hand Operated

1шт.

13

87108393

LATCH

Tool Operated

1шт.

For EU Only

1шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

15

87108209

DOOR

Cleaning Fan

1шт.

16

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

6шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

19

9706755

NUT,M6, Cl 8

3шт.

20

379401

WASHER,11mm ID x 30mm OD

Washer

2шт.
