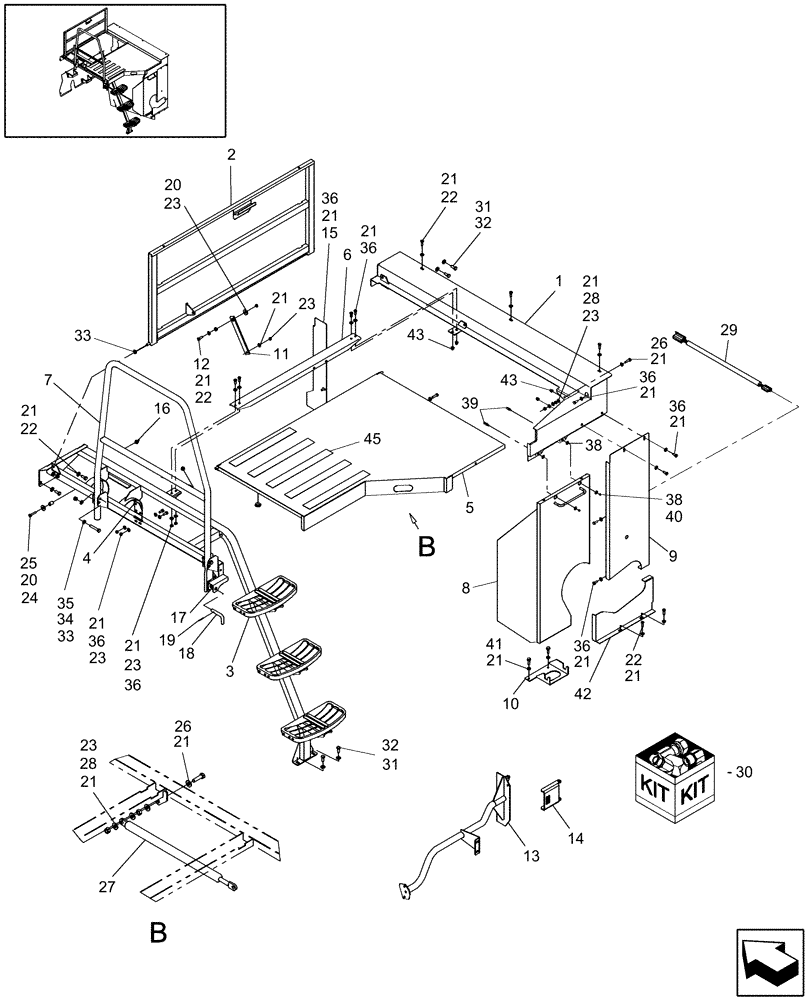

Запчасти Case IH AFX8010 (E.20.A.72[4]) - GUARDS, ENGINE - SINGLE PLANE UPGRADE KIT E - Body and Structure

1

87581059

SUPPORT ASSY.

1шт.

2

87556589

COVER

1шт.

3

87717388

STEP

1шт.

4

87653826

HINGE

2шт.

5

87555598

COVER ASSY

Includes: Ref. 49

1шт.

6

87555590

CHANNEL

1шт.

7

87380912

HANDRAIL

1шт.

8

87584090

SHEET ASSY.

1шт.

9

87582121

SHEET METAL

1шт.

10

87555594

SUPPORT ASSY.

1шт.

11

87109081

SUPPORT

1шт.

12

87281729

BUSHING

1шт.

13

87108097

SUPPORT

1шт.

14

87280544

BRACKET

1шт.

15

87676625

DEFLECTOR

1шт.

16

86975394

BUMPER

2шт.

17

86611329

SPRING

1шт.

18

86611330

PIN,16.56mm OD

1шт.

19

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

20

140041

WASHER,M8 x 28mm OD x 3mm Thk

5шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

61шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

11шт.

23

9706690

NUT,M8 x 1.25, Cl 8

22шт.

24

86580795

SPACER

1шт.

25

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

26

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

27

84334242

GAS STRUT

Bumper

1шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

29

84193633

WIRE HARNESS

Harness, Wire, Service Light

1шт.

30

84181355

SERVICE KIT

Kit, Single Plane Upgrade, See Fig. B.10[3]; Includes: Ref.s 1 - 29, 31 - 36, 38 - 46, Plus Those Components Found On Other Figures, As Indicated

1шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

34

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

35

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

25шт.

37

Reference Not Used

1шт.

40

86508813

NUT,M5, Cl 8

2шт.

41

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

42

87585661

SHEET METAL

1шт.

43

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

44

158188

PLUG,19mm Hole, 28.6mm OD

1шт.

45

80401502

ANTI-SKID STRIP

Roll, L = 18.3M; Cut To Fit

1шт.

46

84432904

DECAL

No Step

1шт.
