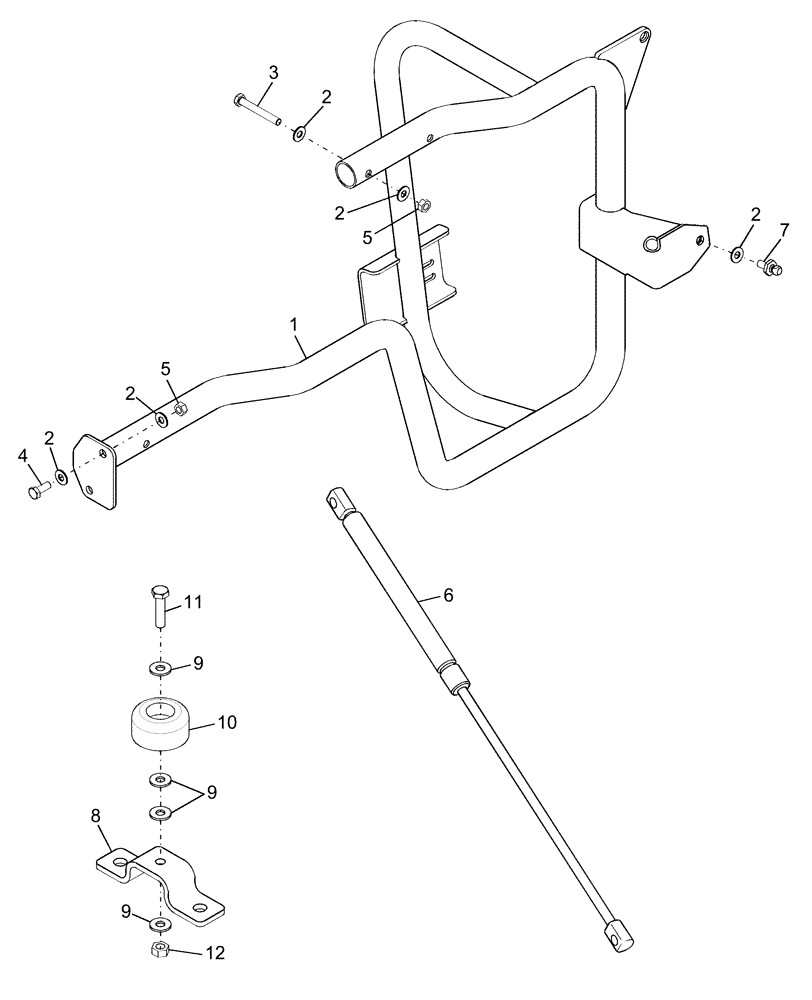

Запчасти Case IH AFX8010 (E.20.A.71[1]) - TUBE SUPPORT, L. H. REAR UPPER PANEL E - Body and Structure

1

87314151

SUPPORT

LH Support - Was 87280161, 87284402

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

3

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

5

9706690

NUT,M8 x 1.25, Cl 8

4шт.

6

87108531

GAS STRUT

900N

1шт.

7

9706807

BALL STUD,M8 x 1.25

BALL PIN

1шт.

8

87001351

BRACKET

Door Stop

1шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

10

86514271

BUMPER

1шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

12

9706755

NUT,M6, Cl 8

1шт.
