Запчасти Case IH AFX8010 (A.10.A.22[1]) - RESERVOIR, HYDRAULIC, WITH HOSES AND SUPPORTS A - Distribution Systems

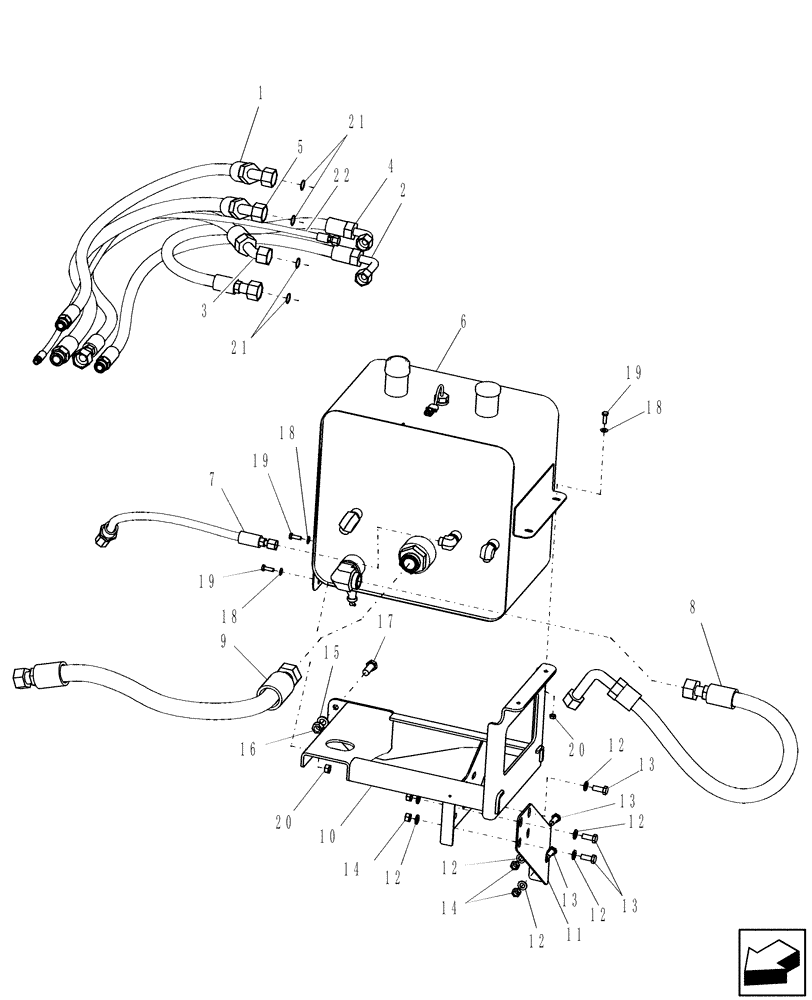

Схема запчастей Case IH AFX8010 - (A.10.A.22[1]) - RESERVOIR, HYDRAULIC, WITH HOSES AND SUPPORTS A - Distribution Systems
20
19
9
19
4
13
12
12
22
8
10
14
12
12
13
17
1
12
15
21
18
2
7
12
11
14
13
19
5
6
3
21
20
16
13
18
18

Артикул

Название

Примечание

Количество

1

87105712

FLEXIBLE HOSE

Hydro Cooler Outlet

1шт.

2

87105713

FLEXIBLE HOSE

Spreader to Air Screen Motor

1шт.

2

87529196

FLEXIBLE HOSE

Spreader to Air Screen Motor, Start Year: 01-JAN-06

1шт.

For EU Only

1шт.

3

87105714

FLEXIBLE HOSE

Aux Cooler Outlet

1шт.

4

87105715

FLEXIBLE HOSE

Motor to Aux Cooler Inlet

1шт.

4

87529197

FLEXIBLE HOSE

Air Screen Motor to Cooler Inlet, Start Year: 01-JAN-06

1шт.

For EU Only

1шт.

5

87105716

FLEXIBLE HOSE

Hydro Cooler Inlet

1шт.

6

86976211

RESERVOIR, HYDRAULIC

1шт.

7

86999156

FLEXIBLE HOSE

PFC Pump, Drain

1шт.

8

86999154

FLEXIBLE HOSE

PFC Pump, Suction

1шт.

9

86999153

FLEXIBLE HOSE

Gear Pump, Suction

1шт.

10

86975645

BRACKET

1шт.

11

86976375

BRACKET

1шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

1шт.

15

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

16

825-1416

NUT,M16, Cl 8

3шт.

17

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

3шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

, Start Year: 01-JAN-06

3шт.

For EU Only

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

22

87529198

FLEXIBLE HOSE

Air Screen Case Drain, Start Year: 01-JAN-06

1шт.

For EU Only

1шт.

Выбрано товаров: 29
