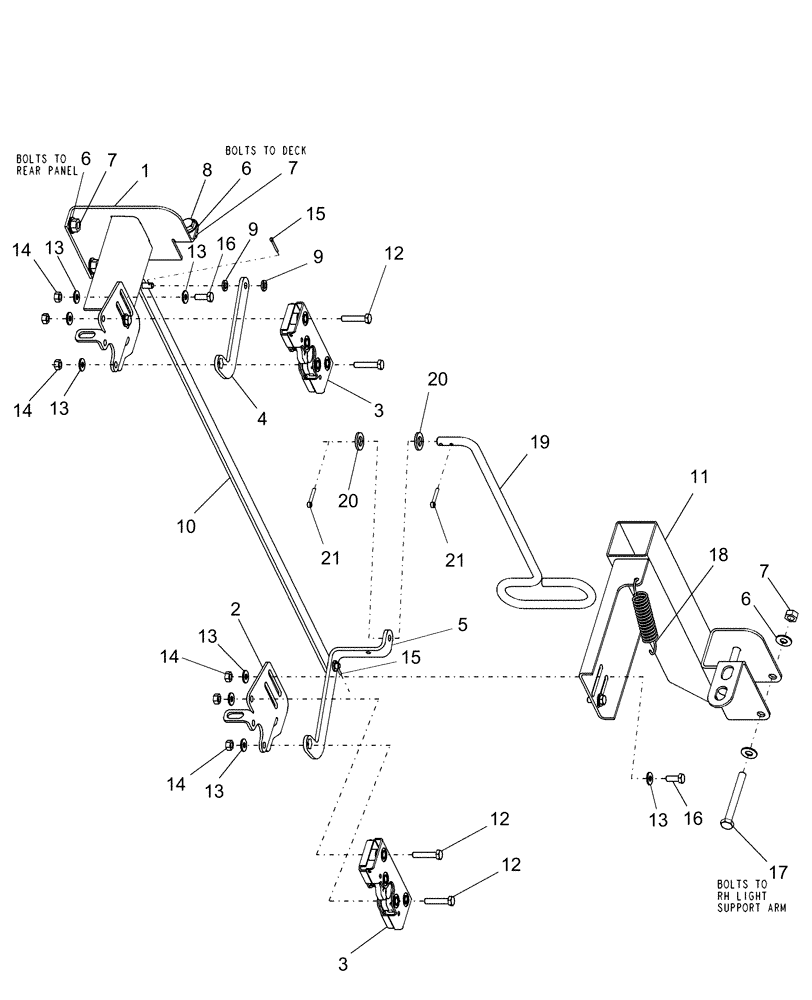

Запчасти Case IH AFX8010 (E.20.A.70[08]) - LATCH, SIDE - NARROW BODY - PRIOR TO P.I.N. XXXXX E - Body and Structure

1

87109686

BRACKET

1шт.

2

87109694

BRACKET

, Years: -15-AUG-03

2шт.

3

87108544

LATCH

, Years: -15-AUG-03

2шт.

4

87109695

LEVER

, Years: -15-AUG-03

1шт.

5

87109696

LEVER

, Years: -15-AUG-03

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

7

9706690

NUT,M8 x 1.25, Cl 8

5шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Years: -15-AUG-03

4шт.

10

87109693

ARM

, Years: -15-AUG-03

1шт.

11

87109691

SUPPORT

, Years: -15-AUG-03

1шт.

11

87282249

SUPPORT

, Start Year: 15-AUG-03

1шт.

12

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

14

9706755

NUT,M6, Cl 8

8шт.

15

9512667

COTTER PIN,M2 x 20mm OAL

, Years: -15-AUG-03

2шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

17

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

18

87109697

SPRING

Extension

1шт.

19

87109698

HANDLE

, Years: -15-AUG-03

1шт.

20

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

, Years: -15-AUG-03

2шт.

21

130003

COTTER PIN,3mm OD x 30mm OAL

, Years: -15-AUG-03

2шт.
