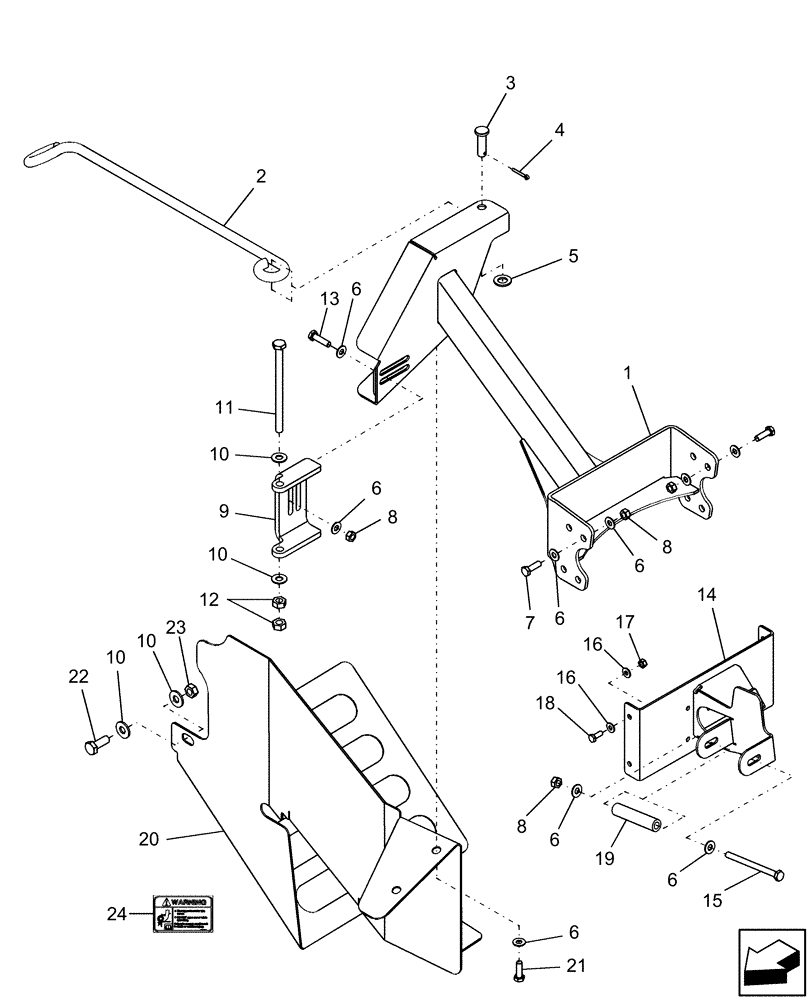

Запчасти Case IH AFX8010 (E.20.A.70[05A]) - BRACKETS & HINGE, R.H. LOWER - P.I.N. XXXXXX & AFTER E - Body and Structure

1

87282832

BRACKET

1шт.

2

87282373

ROD

RH Door Keeper

1шт.

3

728-1240

CLEVIS PIN,M12 x 40

1шт.

4

80755

COTTER PIN,1/8" OD x 1" L

1шт.

5

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

9706690

NUT,M8 x 1.25, Cl 8

11шт.

9

87283274

BRACKET

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

1шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

87105594

BRACKET

1шт.

15

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

17

9706755

NUT,M6, Cl 8

4шт.

18

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

19

87282194

SPACER

Latch

1шт.

20

87510523

SHIELD

Belt - Includes Ref. 24

1шт.

For NA Only

1шт.

20

87510558

SHIELD

Belt - Includes Ref. 24

1шт.

For EU Only

1шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

22

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

23

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

24

86626958

WARNING DECAL

English

1шт.

For NA Only

1шт.

24

84011345

DECAL

Warning

1шт.

For EU Only

1шт.
