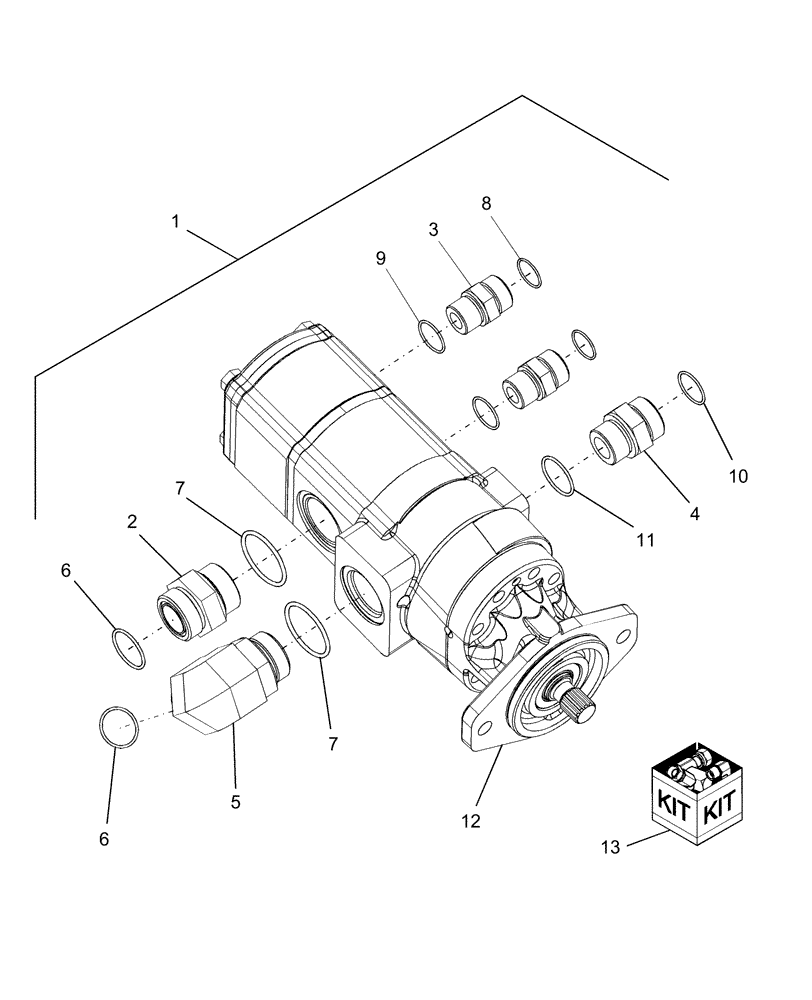

Запчасти Case IH AFX8010 (A.10.A.20[2]) - PUMP, TRIPLE GEAR A - Distribution Systems

1

86996946

HYDRAULIC PUMP

[2109383], BPIN HAJ105375

1шт.

1

84273626R

REMAN-HYD PUMP

AFX8010 Before P.I.N. HAJ105375

1шт.

1

84273626C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87284570

HYDRAULIC PUMP

(2991224), PIN HAJ105375 and after

1шт.

1

84273626R

REMAN-HYD PUMP

AFX8010 P.I.N. HAJ105375 & Aft.

1шт.

1

84273626C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

Includes Ref. 6 & 7

1шт.

3

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Includes Ref. 8 & 9

2шт.

4

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Includes Ref. 10 & 11

1шт.

5

86579700

ELBOW,90 Degree, 1 11/16"-12 ORFS x M42 x 2 ORB

Includes Ref. 6 & 7

1шт.

6

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

7

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

9

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

11

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

12

86998057

HYDRAULIC PUMP

[2109383], BPIN HAJ105375

1шт.

12

84273626R

REMAN-HYD PUMP

AFX8010 Before P.I.N. HAJ105375,

1шт.

12

84273626C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

87284569

HYDRAULIC PUMP

(2991224), PIN HAJ105375 and after

1шт.

12

84258982R

REMAN-HYD PUMP

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06), Reman for New P/N 87284569

1шт.

12

84258982C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

87283528

SEAL KIT

For 86998057

1шт.

13

87284671

SEAL KIT

For 87284569

1шт.
