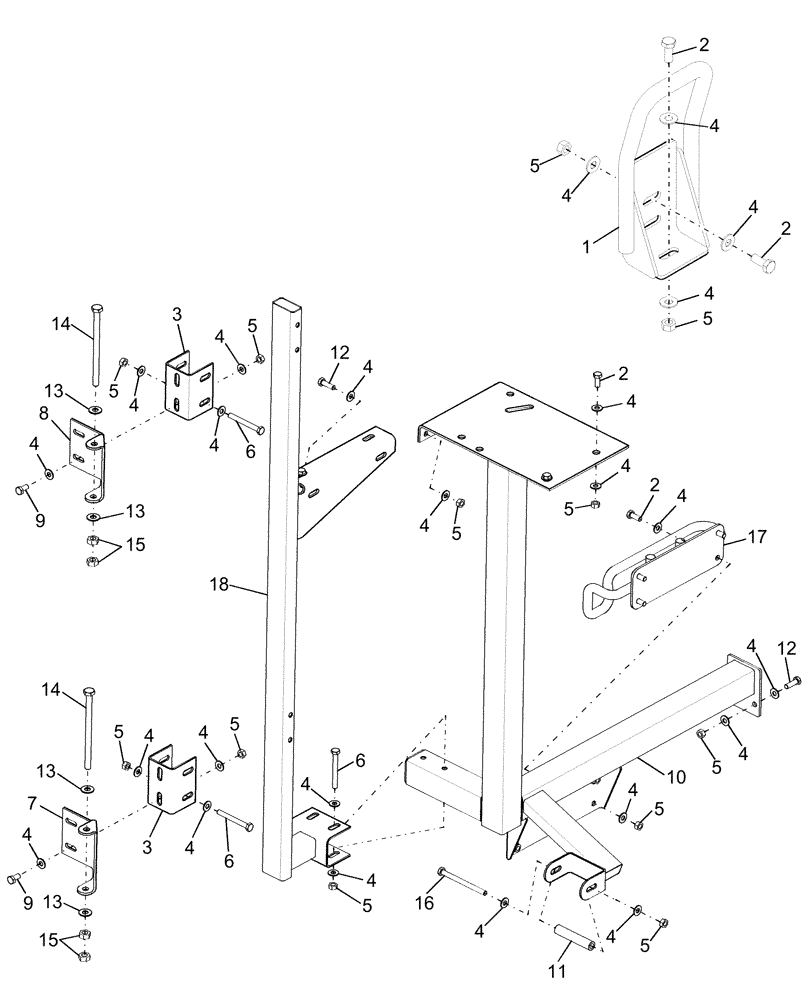

Запчасти Case IH AFX8010 (E.20.A[3]) - SUPPORT, REAR DOOR E - Body and Structure

1

87280396

ROD

, Years: -15-AUG-03

1шт.

1

87282203

ROD

, Start Year: 15-AUG-03

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

11шт.

3

86976748

BRACKET

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

52шт.

5

9706690

NUT,M8 x 1.25, Cl 8

26шт.

6

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

6шт.

7

87000860

BRACKET

1шт.

8

86976750

BRACKET

1шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

10

87109406

SUPPORT

1шт.

11

86975340

Pin, Panel Latch

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

14

212668

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8, Full Thd

2шт.

15

100016

NUT,M10 x 1.5, Cl 8

4шт.

16

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

17

87109956

BRACKET

RH Rear Door Keeper

1шт.

18

87280180

SUPPORT

1шт.
