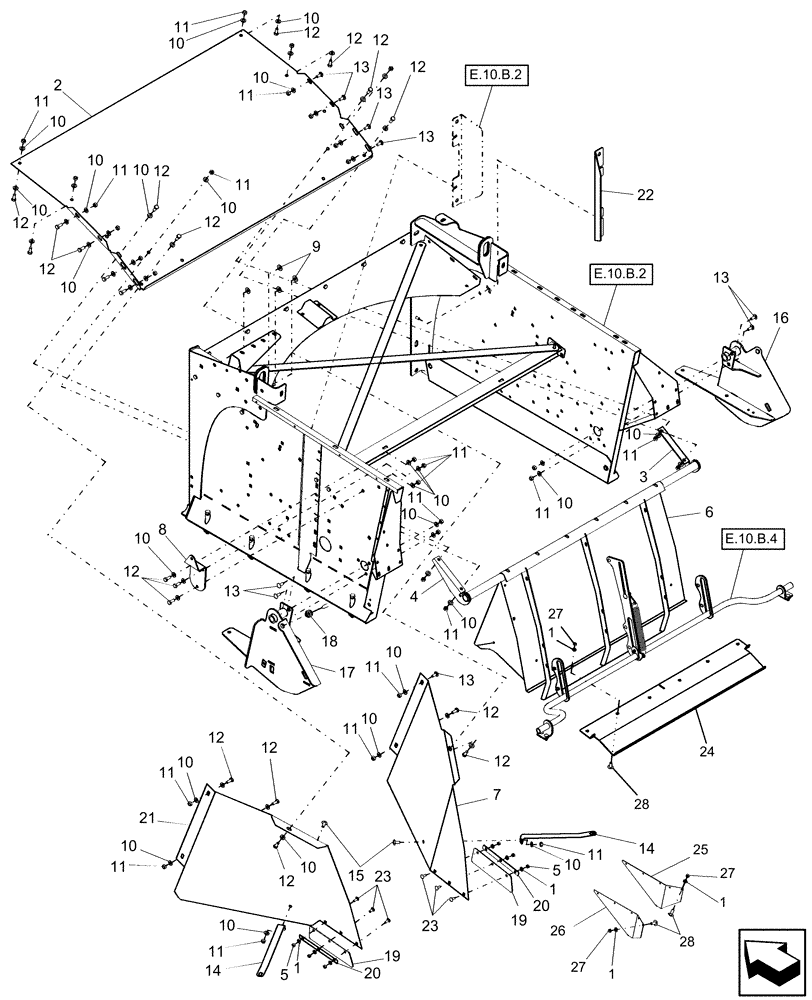

Запчасти Case IH AFX8010 (E.10.B[3]) - STRAWHOOD - PIN HAJ105201NA/HAJ103201EU AND AFTER E - Body and Structure

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

2

87107970

SHEET

1шт.

3

86975687

SUPPORT

RH

1шт.

4

86975685

SUPPORT

LH

1шт.

5

43362

NUT,M8 x 1.25, Cl 10

6шт.

6

87510733

DOOR

Straw

1шт.

6

87380015

DOOR

1шт.

7

87283232

PANEL

RH, Convergence

1шт.

7

87324936

DEFLECTOR

1шт.

8

87109078

BRACKET

Cylinder

1шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

51шт.

11

100016

NUT,M10 x 1.5, Cl 8

31шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

20шт.

13

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

9шт.

14

87281908

SUPPORT

2шт.

15

62320

SCREW,Cross, Rd Hd, M10 x 25

2шт.

16

87283165

SUPPORT

RH, Spreader Pivot

1шт.

17

87283157

SUPPORT

LH, Spreader Pivot

1шт.

18

84058863

SENSOR

Proximity, Spreader Position

1шт.

19

87283234

SEAL

Spreader - 76 mm

2шт.

19

87348132

SEAL,107mm W x 264mm L

Spreader - 107 mm

2шт.

20

87283312

RETAINER

Spreader Seal

2шт.

21

87283230

PANEL

LH, Convergence

1шт.

21

87324890

DEFLECTOR

1шт.

22

87283259

ANGLE

Deflector

2шт.

23

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

6шт.

24

87324772

PLATE

Campaign Part, Large Opening Door

1шт.

25

87044364

PLATE

RH, Large Opening Door

1шт.

26

87044362

PLATE

LH, Large Opening Door

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

28

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

12шт.
