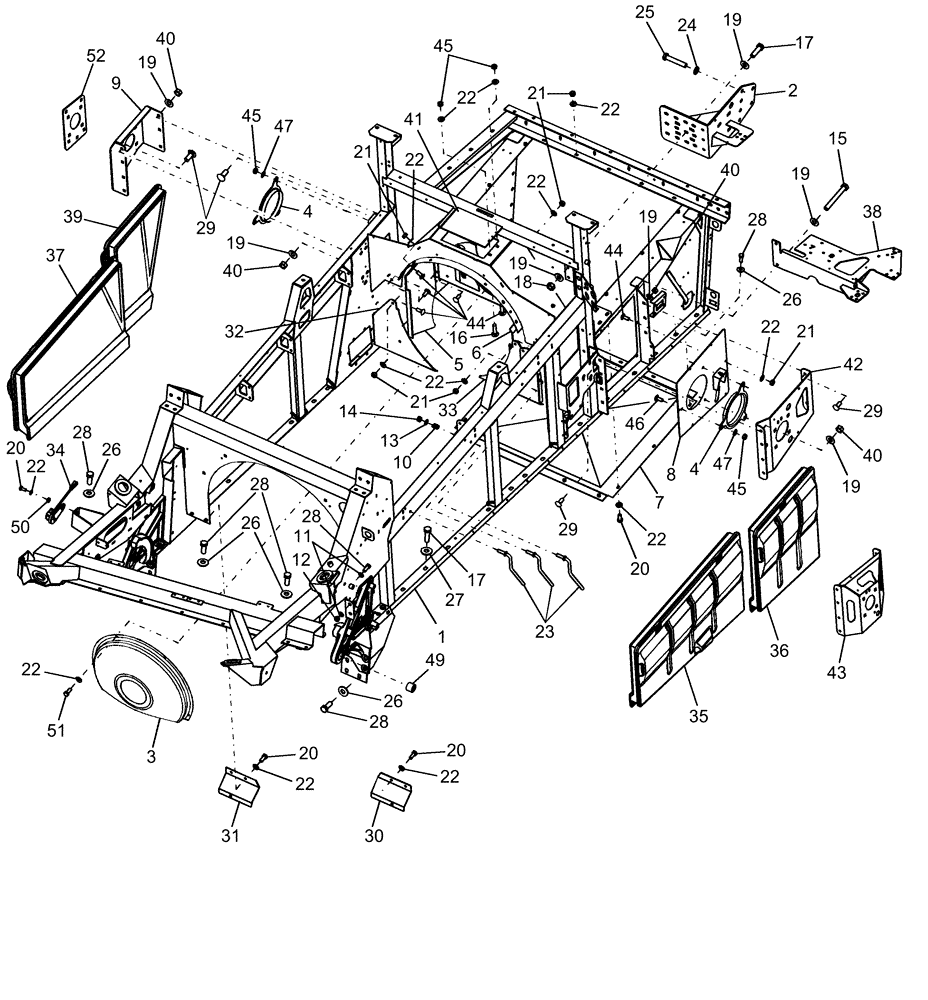

Запчасти Case IH AFX8010 (E.10.B[1]) - FRAME, THRESHING E - Body and Structure

1

NS

NOT SERVICED

Main Frame, was 87109809, Replaces 87105303, Years: -31-JAN-05

1шт.

1

NS

NOT SERVICED

Main Frame, 87324600, Start Year: 01-FEB-05

1шт.

2

87108897

SUPPORT

, Serial Range: -HAJ105757

1шт.

2

87284952

SUPPORT

, Start Serial: HAJ105758

1шт.

3

87106513

CONE

1шт.

4

87108633

RING

, Years: -06-DEC-03

2шт.

5

87107510

DEFLECTOR

RH

1шт.

6

87107511

DEFLECTOR

LH

1шт.

7

87109397

ACCESS COVER

1шт.

8

87108668

PLATE

, Years: -09-FEB-04

1шт.

8

87282876

PLATE

, Start Year: 09-FEB-04

1шт.

9

87282803

BRACKET

1шт.

10

87281904

SPRING

6шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

12

825-1416

NUT,M16, Cl 8

4шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

15

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

16

87024996

BOLT

Carriage, Short Neck, CL 8.8, M8 x 40

2шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

38шт.

18

9706685

NUT,M12 x 1.75, Cl 8

14шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

42шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

27шт.

21

9706690

NUT,M8 x 1.25, Cl 8

31шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

23

87106461

HANDLE

Access Door

6шт.

24

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

25

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

6шт.

26

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

27

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

26шт.

28

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

20шт.

29

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

14шт.

30

87000628

COVER

LH

1шт.

30

87352267

COVER

LH

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

31

87000630

COVER

RH

1шт.

31

87352269

COVER

RH

1шт.

Enhanced Cleaning

1шт.

Also Included In Enhanced Cleaning Kit; See Fig. K.62.B.63

1шт.

32

87107515

PLATE

RH

1шт.

33

87107513

PLATE

LH

1шт.

34

87108745

SENSOR

Inclination

1шт.

34

87282765

SENSOR

Inclination, Start Year: 06-DEC-03

1шт.

35

87000990

DOOR

Rotor, LH, Front

1шт.

36

86975027

DOOR

Rotor, LH, Rear

1шт.

37

87000991

DOOR

Rotor, RH, Front

1шт.

38

87109087

BRACKET

1шт.

39

86975029

DOOR

Rotor, RH, Rear

1шт.

40

337475

NUT,M12, Cl 10

14шт.

41

86976525

COVER

, Years: -06-DEC-03

1шт.

41

87282112

COVER

, Start Year: 06-DEC-03

1шт.

42

87109779

PLATE

Mounting, LH - 52" Wide

1шт.

43

87108645

BRACKET

, Years: -06-DEC-03

1шт.

43

87283010

BRACKET

, Years: 09-FEB-04-01-SEP-05

1шт.

43

87316122

BRACKET

Mounting, LH, Start Year: 01-SEP-05

1шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

22шт.

45

43362

NUT,M8 x 1.25, Cl 10

8шт.

46

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

47

80140041

WASHER

M8

1шт.

48

86629542

NUT,M8 x 1.25, Cl 8.8

Prevailing Torque, Start Year: 06-DEC-03

1шт.

49

87280254

BUSHING,44.62mm ID x 50.86mm OD x 30mm L

2шт.

50

87283407

BUSHING

, Start Year: 06-DEC-03

2шт.

51

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

, Start Year: 06-DEC-03

4шт.

52

87282128

BRACKET

RH - Flat

1шт.
