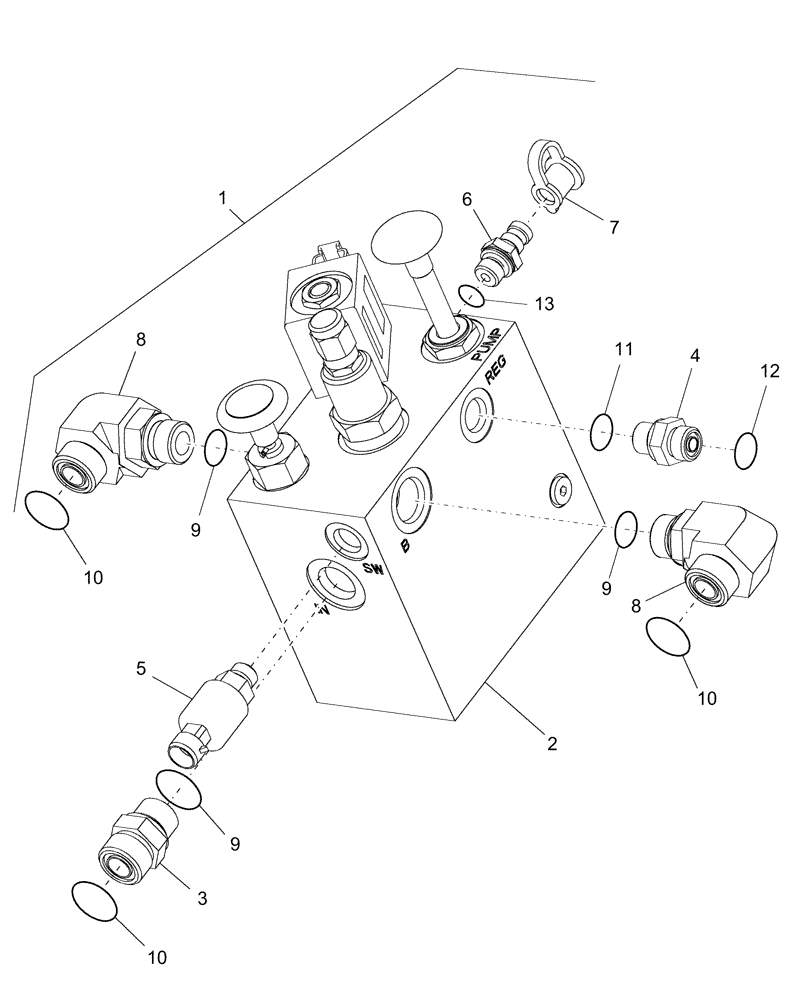

Запчасти Case IH AFX8010 (D.32.C.59[01]) - VALVE, HYDRAULIC - PARK / TOW D - Travel

1

87109702

HYDRAULIC VALVE

Includes Fittings

1шт.

2

87109701

HYDRAULIC VALVE

See Fig. D.32.C.59 (02)

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

5

86597585

SENSOR

Park Brake Pressure

1шт.

6

84320565

COUPLING,M14 x 1.5

Diagnostic

1шт.

7

86502604

DUST CAP

1шт.

8

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

2шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
