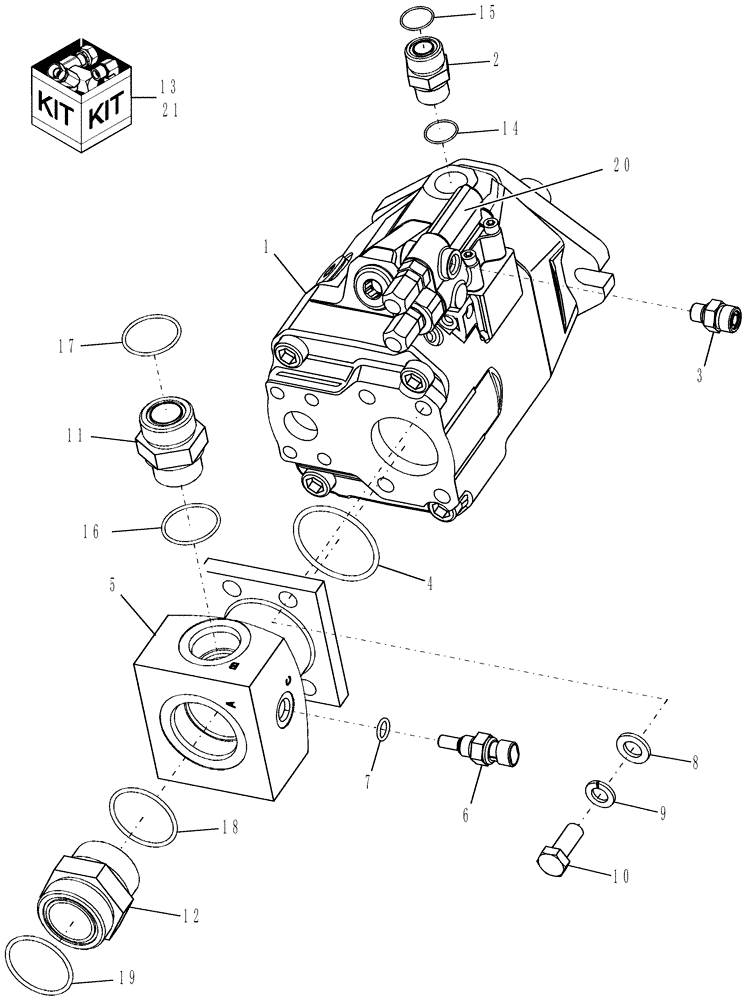

Запчасти Case IH AFX8010 (A.10.A.20[1]) - PUMP, HYDRAULIC, PFC A - Distribution Systems

1

87105987

HYDRAULIC PUMP,63 CC

Pressure Flow Compensated; Includes: Ref. 20

1шт.

1

87105987R

REMAN-HYD PUMP

Pressure Flow Compensated

1шт.

1

87105987C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

3

87106462

ADAPTER

Screen

1шт.

4

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

5

86975008

MANIFOLD

1шт.

6

86571273

SENSOR

Hydraulic Oil Temperature

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

9

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

10

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

11

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

1шт.

12

86836518

HYD CONNECTOR,2"-12 ORFS x M48 x 2 ORB

1шт.

13

87010918

SEAL KIT

1шт.

14

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

18

86583917

O-RING,2.9mm Thk x 44.6mm ID, Cl 6, 90 Duro

1шт.

19

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

20

8604960

CONTROL VALVE

Regulator, Pressure

1шт.

21

87380545

SERVICE KIT

1шт.

Services Ref. 20

1шт.

22

86598043

PLUG,M12 x 1.5 ORB

1шт.

Services Ref. 20

1шт.

Not Shown

1шт.

23

86512136

HEX SOC SCREW,M6 x 30mm, Cl 12.9

4шт.

Services Ref. 20

1шт.

Not Shown

1шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

Services Ref. 20

1шт.

Not Shown

1шт.
