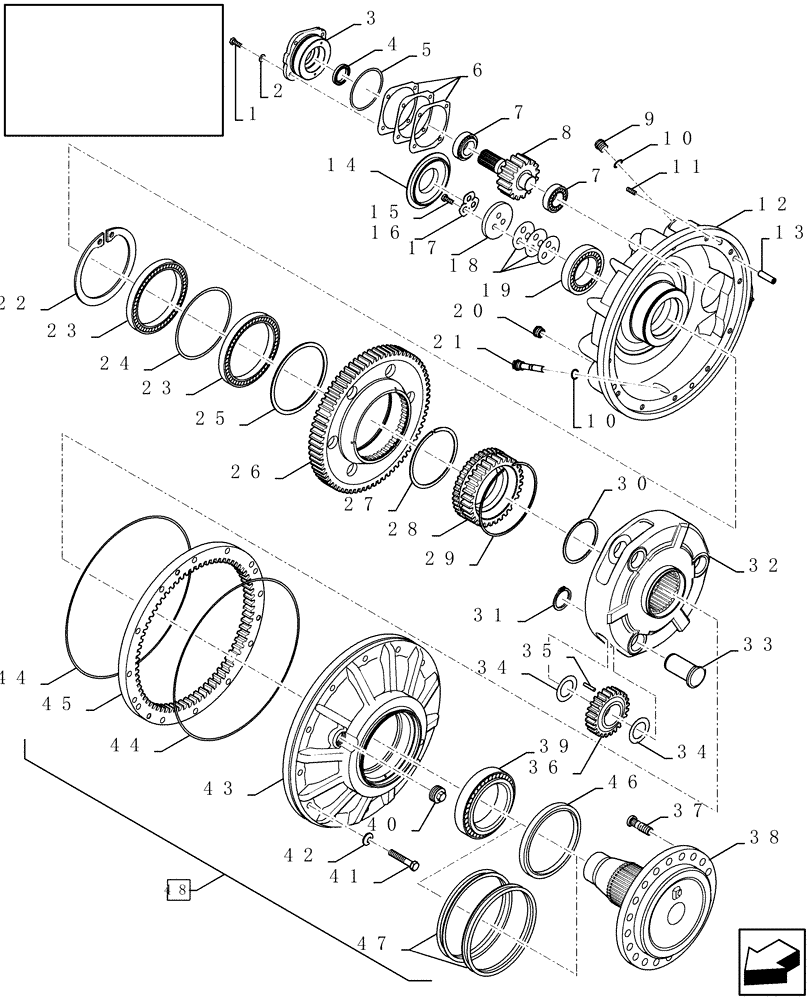

Запчасти Case IH AFX8010 (D.10.A.42[2]) - PLANETARY FINAL DRIVE, PRIOR TO PIN HAJ106401 D - Travel

1

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

3

84074714

COVER

1шт.

4

84074392

SEALING WASHER,45mm ID x 62mm OD x 8mm Thk

1шт.

Seal, 42 x 65 x 8

1шт.

5

84074393

O-RING,5mm Thk x 120mm ID, 70 Duro

1шт.

6

84074713

SHIM,0.5mm Thk

1шт.

6

84074712

SHIM,130mm ID x 72.5mm OD x 0.2mm Thk

1шт.

6

84074711

SHIM,0.05mm Thk

1шт.

7

84074701

TAPERED BEARING,45mm ID x 80mm OD x 26mm W

2шт.

8

84074717

GEAR

1шт.

9

150006

DRAIN PLUG,M24 x 1.5

1шт.

10

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

11

84074543

SET SCREW,Hex Soc, M16 x 30

3шт.

12

84074832

HOUSING

1шт.

13

84074391

DOWEL,16mm OD x 60mm L

2шт.

14

84074709

COVER

1шт.

15

84056523

BOLT,Hex, M16 x 45mm, Cl 10.9

3шт.

16

84075204

LOCKING PLATE

1шт.

17

84074710

MOUNTING PLATE

1шт.

18

84074706

SHIM,0.5mm Thk

1шт.

18

84074707

SHIM,0.2mm Thk

1шт.

18

84074708

SHIM,0.05mm Thk

1шт.

19

84074719

TAPERED BEARING,90mm ID x 145mm OD x 35mm W

1шт.

20

84071596

PLASTIC PLUG,M31 x 19mm

Sight, Lower, 26mm

2шт.

20

84817215

PLUG,3/4"

Plastic, Upper, 26mm , Socket Head

2шт.

21

84074519

MAGNETIC PLUG,M24 x 1.5, 96L

PLUG, MAGNETIC

1шт.

22

84074401

SNAP RING

1шт.

23

84074402

BALL BEARING,180mm ID x 225mm OD x 22mm W

2шт.

24

84074705

RING

1шт.

25

84074725

RING

1шт.

26

84074704

GEAR

1шт.

27

84074403

SNAP RING

1шт.

28

84074724

GEAR

1шт.

29

84074405

SNAP RING

1шт.

30

84074395

SNAP RING,M123.6

1шт.

31

370008

SNAP RING,M50, Ext

3шт.

32

84078324

RETAINER

Planetary

1шт.

33

84072219

PIN,50.5mm OD x 110.2mm L

3шт.

34

84074023

SHIM,51.5mm ID x 80mm OD x 1mm Thk

6шт.

35

84074703

NEEDLE,8mm x 42mm

69шт.

36

84074702

PLANETARY GEAR,21T

3шт.

37

330291

WHEEL BOLT

10шт.

37

87282493

STUD,M22 x 1.5 x 84mm

Dual

10шт.

38

84071703

FLANGE

1шт.

Standard

1шт.

38

84073413

FLANGE

1шт.

For Muddy Conditions Only

1шт.

39

84074720

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

40

84074399

PLUG

45 mm, Tapered

1шт.

41

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

12шт.

42

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

43

84074831

HOUSING

1шт.

Standard

1шт.

43

84074833

HOUSING

1шт.

For Muddy Conditions Only

1шт.

44

84074400

O-RING,4mm Thk x 500mm ID, 70 Duro

2шт.

45

84074723

SPLINED RING,75T

1шт.

46

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

1шт.

Standard

1шт.

47

84074404

SEAL,272.47mm ID x 297.87mm OD x 39mm Thk

EU Only

1шт.

For Muddy Conditions Only

1шт.

48

84074594

FINAL DRIVE

FINAL REDUCTION GEARBOX, Serial Range: (1-46)

1шт.

Standard

1шт.

48

87283791

FINAL DRIVE

FINAL REDUCTION GEARBOX Dual Wheels

1шт.

Standard

1шт.

48

84100909

FINAL DRIVE

FINAL REDUCTION GEARBOX (1 to 45, 47)

1шт.

For Muddy Conditions Only

1шт.

48

87283834

FINAL DRIVE

FINAL REDUCTION GEARBOX Dual Wheels

1шт.

For Muddy Conditions Only

1шт.

48

84407411R

REMAN-FINAL DRIVE

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, PRIOR TO PIN HAJ106401, FINAL REDUCTION GEARBOX Dual Wheels, For Muddy Conditions Only (3/03-9/06), Reman for New PN 87283834

1шт.

48

84407411C

CORE-FINAL DRIVE

Return Number

1шт.
