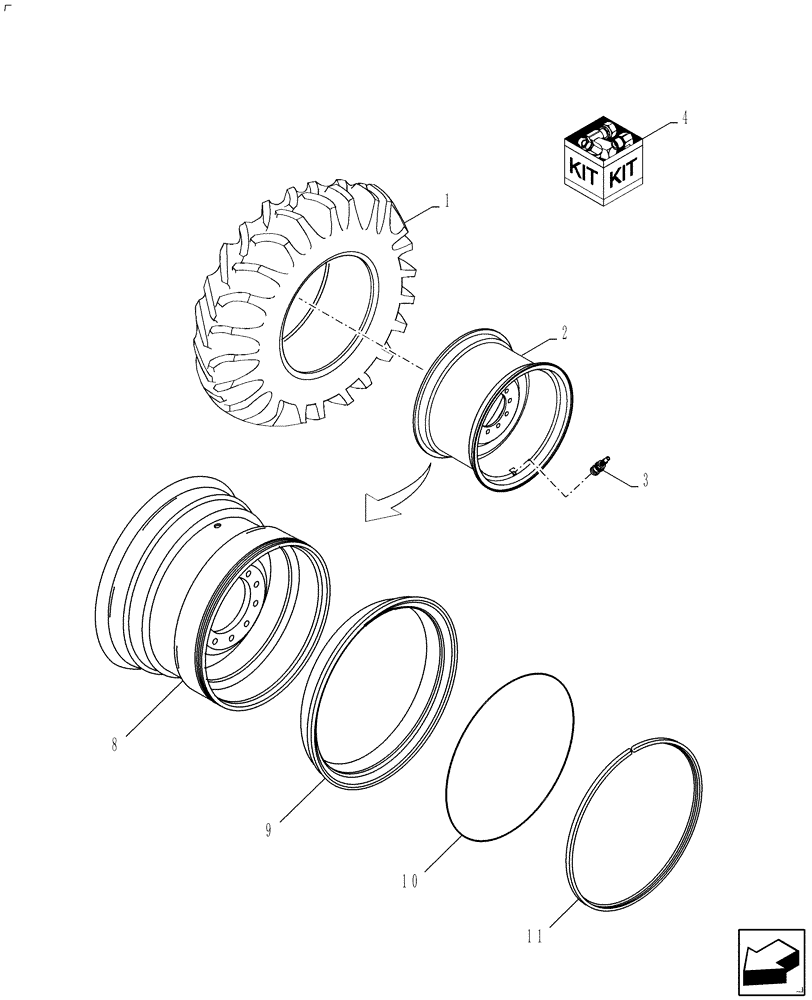

Запчасти Case IH AFX8010 (D.50.C.60[4]) - WHEELS, FRONT - 76 X 50.00-32 X DW44A D - Travel

1

NS

NOT SERVICED

Tire

1шт.

2

86996678

WHEEL ASSY

Incl. Ref 8 thru 11

1шт.

3

86997685

TIRE TUBE

1шт.

4

87280416

KIT

Includes Ref. 5 & 6

1шт.

4

87283866

KIT

Includes Ref. 5, 6, & 7

1шт.

5

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

20шт.

Not Shown

1шт.

6

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

20шт.

Not Shown

1шт.

7

87283521

STUD,M22 x 180

2шт.

Not Shown

1шт.

8

NSS

NOT SOLD SEPARAT

Wheel

1шт.

9

87758241

LOCKING RING

Side; 32x44DWM

1шт.

10

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

11

184472C1

RING

1шт.
