(D.50.C.60[3]) - WHEELS, FRONT - 32 X DW27A

Запчасти Case IH AFX8010 (D.50.C.60[3]) - WHEELS, FRONT - 32 X DW27A D - Travel

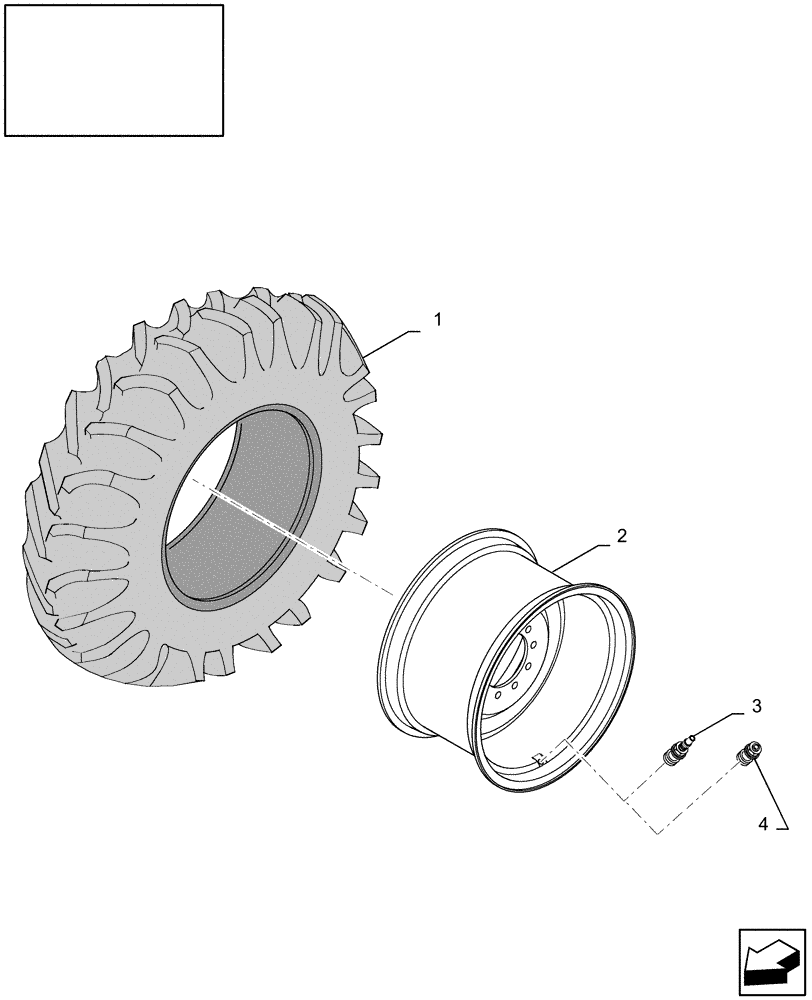

Схема запчастей Case IH AFX8010 - (D.50.C.60[3]) - WHEELS, FRONT - 32 X DW27A D - Travel
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Tire

1шт.

2

86996617

WHEEL

32 x DW27A

1шт.

3

87106339

VALVE STEM

1шт.

4

87106340

PLUG

For Tubeless Tire

1шт.

4

86998062

PLUG

Not Shown, For Tire with Tube Only

1шт.

5

NS

NOT SERVICED

Not Shown, Tube

1шт.

Выбрано товаров: 6
