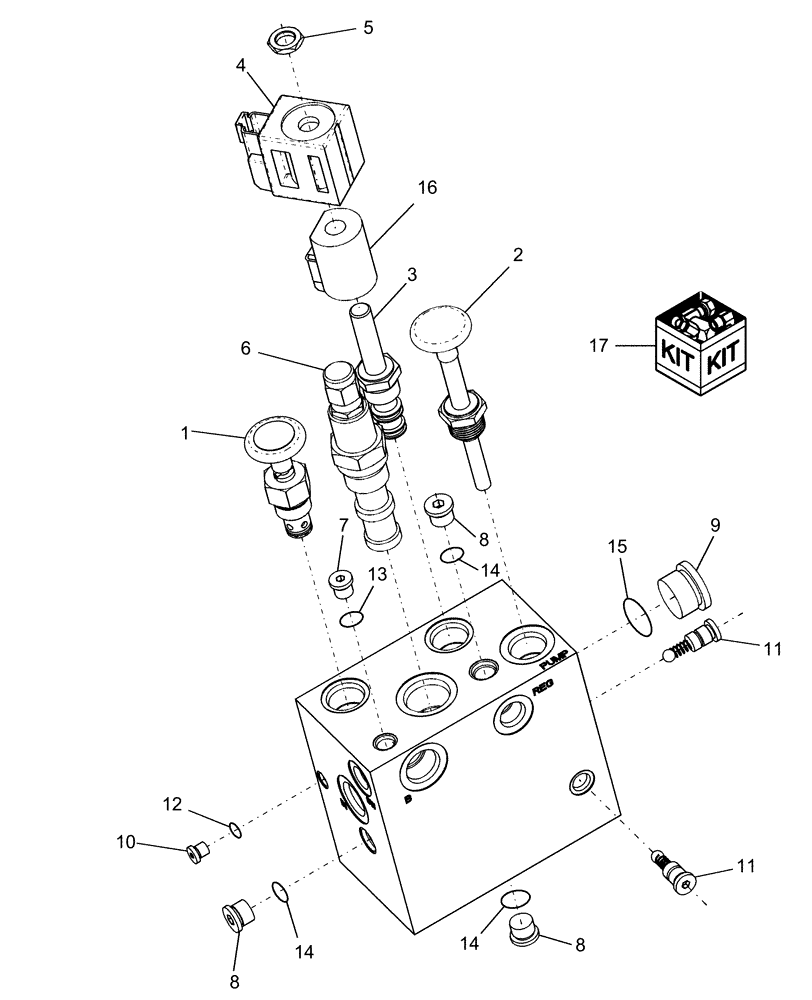

Запчасти Case IH AFX8010 (D.32.C.59[02]) - VALVE, HYDRAULIC - PARK / TOW D - Travel

1

87434007

SHUT-OFF VALVE

1шт.

2

87434008

PUMP

Hand

1шт.

3

190711A1

VALVE

3 - Way / 2 - Position

1шт.

4

87352779

SOLENOID

Was 86837739

1шт.

5

195683A1

JAM NUT,1/2"-20

1шт.

6

377593A1

VALVE PRESSURE RELIE

1шт.

7

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

8

9625178

PLUG,9/16" - 18 ORB

3шт.

9

9841223

PLUG,1-1/16" - 12 ORB

1шт.

10

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

11

1341811C1

SPRING-CHECK

REPAIR KIT

2шт.

12

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

190715A1

SOLENOID

Included with Ref. 3

1шт.

17

1260872C91

SEAL KIT

Services Ref. 3

1шт.
