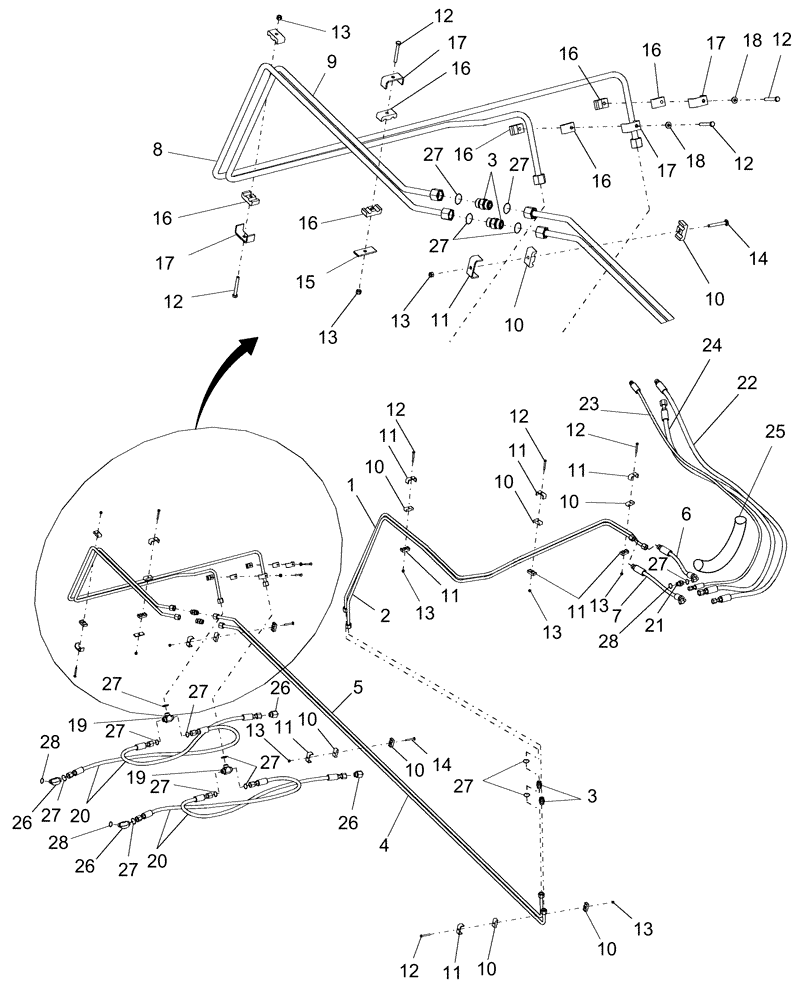

Запчасти Case IH AFX8010 (D.20.C.36[1]) - STEERING LINES D - Travel

1

87106471

HYD TUBE,0.50" OD

Steering, Front, RH

1шт.

2

87106472

HYD TUBE,0.50" OD

Steering, Front, LH

1шт.

3

84431547

UNION,13/16"-16 ORFS

4шт.

4

86975347

HYD TUBE

Steering, Mid, Lower

1шт.

5

86975348

HYD TUBE,0.50" OD

Steering, Mid, Upper

1шт.

6

87105922

FLEXIBLE HOSE

SCU, RH

1шт.

7

86975355

FLEXIBLE HOSE

SCU, LH

1шт.

8

87011296

HYD TUBE,12.7mm OD

Steering

1шт.

9

86575639

HYD TUBE,12.7mm OD

Steering

1шт.

10

430357

CLAMP

16шт.

11

431941

SUPPORT

8шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

8шт.

13

353308

NUT,M6 x 1.0, Cl 8

8шт.

14

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

15

434097

SUPPORT

1шт.

16

433008

CLAMP

4шт.

17

442340

SUPPORT

2шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

19

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

20

84068103

HYDRAULIC HOSE,9.53mm ID x 1200mm L, SAE 100R16

Steering Cylinder

4шт.

21

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

22

87106440

HYD TUBE

SCU, Supply

1шт.

23

87106441

HYD TUBE

SCU, LS

1шт.

24

87106442

HYD TUBE

SCU, Return

1шт.

25

87106240

SLEEVE

Steering Hoses, Front

1шт.

26

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

17шт.

28

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

5шт.

29

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
