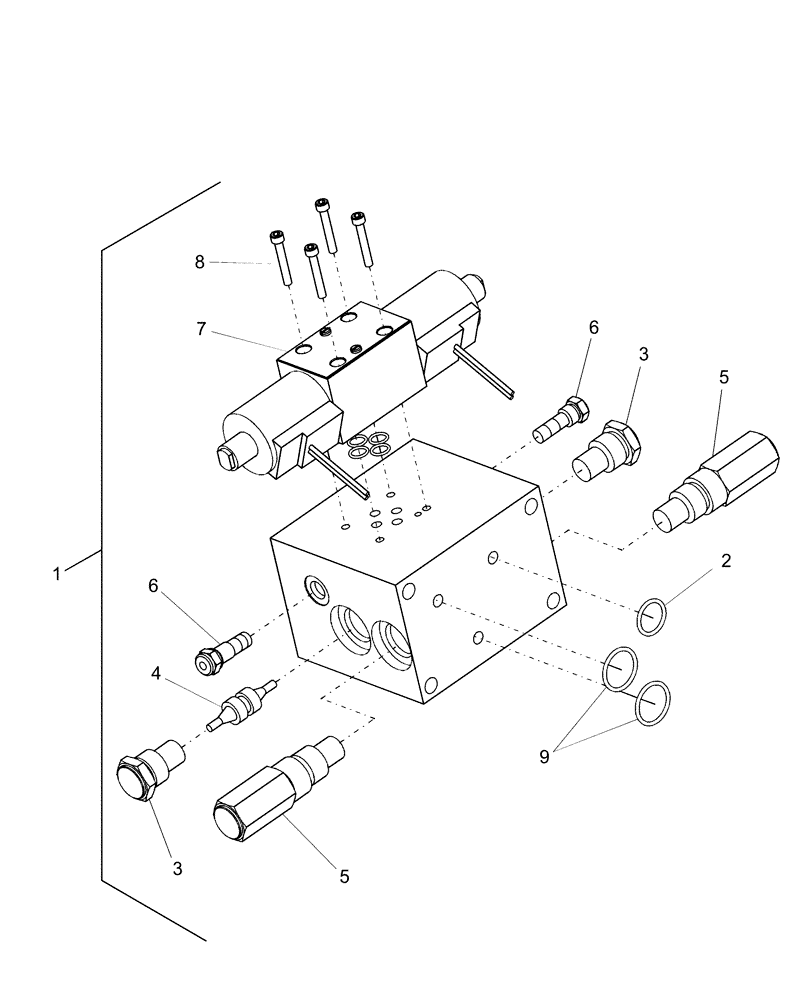

Запчасти Case IH AFX8010 (A.10.A.18[8]) - VALVE, LATERAL TILT A - Distribution Systems

1

86995690

CONTROL VALVE

Add-On - Lateral Tilt

1шт.

2

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

3

87433998

CHECK VALVE,7/8" - 14

2шт.

4

149940C1

PISTON

1шт.

5

190986A1

VALVE PRESSURE RELIE,7/8" - 14

2шт.

6

190704A1

CHECK VALVE

2шт.

6a

190707A1

SEAL KIT

Repair Ref. 6

2шт.

7

86995306

VALVE

Three Position, Four Way

1шт.

86995306R

REMAN-HYD VALVE

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

1шт.

86995306C

CORE-VALVE HYD

Return Number

1шт.

8

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.
