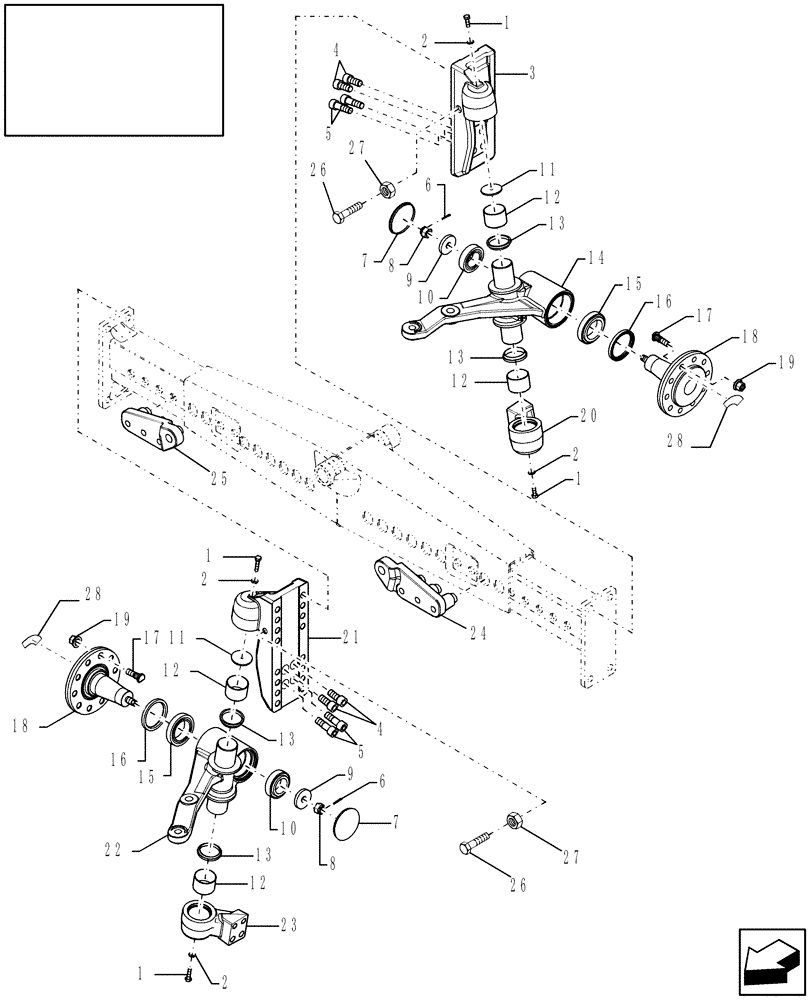

Запчасти Case IH AFX8010 (D.12.A.69) - STANDARD STEERING AXLE SPINDLES D - Travel

1

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

2

80446307

SEALING RING

SEALRING

4шт.

3

84074069

SUPPORT

LH, Serial Range: -HAJ105205

1шт.

3

84446945

SUPPORT

LH, Start Serial: HAJ105206

1шт.

4

84069447

HEX SOC SCREW,M24 x 2 x 50mm, Cl 8.8

4шт.

5

84069505

BOLT,Hex Skt, Shldr, M24 x 2 x 70mm, Cl 8.8

4шт.

6

80130011

COTTER PIN

M5 x 40

2шт.

7

84431059

COVER

, Serial Range: -HAJ105205

2шт.

7

84429450

COVER

, Start Serial: HAJ105206

2шт.

8

86571703

SLOTTED NUT,M24 x 1.5

Nut, Slotted

2шт.

9

84064952

WASHER,25mm ID x 80mm OD x 12mm Thk

2шт.

10

84068653

TAPERED BEARING,65mm ID x 110mm OD x 34mm W

2шт.

11

84074068

DISC,5mm ID x 82mm OD x 5mm Thk

2шт.

12

84074214

BUSHING,80mm ID x 85mm OD x 60mm L

, Serial Range: -HAJ105205

4шт.

12

84064163

BUSHING,80mm ID x 90mm OD x 80mm L

, Start Serial: HAJ105206

4шт.

13

84069731

SEALING RING,80mm ID x 94mm OD x 9mm Thk

4шт.

14

84074065

STEERING KNUCKLE

, Serial Range: -HAJ105205

1шт.

14

84448541

STEERING KNUCKLE,LH

, Start Serial: HAJ105206

1шт.

15

84068654

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

2шт.

16

84068674

SEALING RING,110mm ID x 130mm OD x 12mm Thk

12 x 110 ID x 130 OD, Serial Range: -HAJ105205

2шт.

16

84454949

SEALING RING,125mm ID x 150mm OD x 12mm Thk

12 x 125 ID x 150 OD, Start Serial: HAJ105206

2шт.

17

84062510

BOLT

Wheel, CL 10.9, M20 x 1.5 x 70, Serial Range: -HAJ105205

20шт.

17

84443588

WHEEL BOLT,M20 x 76mm, Cl 10.9

, Start Serial: HAJ105206

20шт.

18

84074076

FLANGE

Wheel, Serial Range: -HAJ105205

2шт.

18

84448564

FLANGE

Wheel, Start Serial: HAJ105206

2шт.

19

84062511

WHEEL NUT,M20

20шт.

20

84074071

SUPPORT

LH, Serial Range: -HAJ105205

1шт.

20

84446948

SUPPORT

LH, Start Serial: HAJ105206

1шт.

21

84074070

SUPPORT

RH, Serial Range: -HAJ105205

1шт.

21

84446947

SUPPORT

RH, Start Serial: HAJ105206

1шт.

22

84074064

STEERING KNUCKLE

, Serial Range: -HAJ105205

1шт.

22

84448540

STEERING KNUCKLE,RH

, Start Serial: HAJ105206

1шт.

23

84074072

SUPPORT

RH, Serial Range: -HAJ105205

1шт.

23

84446949

SUPPORT

RH, Start Serial: HAJ105206

1шт.

24

84435031

AXLE

LH

1шт.

25

84435034

SUPPORT

RH

1шт.

26

84075037

BOLT,Hex, M24 x 60mm, Cl 12.9

, Serial Range: -HAJ105205

2шт.

26

87035522

SET SCREW,M24 x 85mm

, Start Serial: HAJ105206

2шт.

27

9848973

NUT,M24 x 3.0, Cl 10

, Serial Range: -HAJ105205

2шт.

27

10717921

THIN NUT,Thin, M24 x 3, Cl 05

, Start Serial: HAJ105206

2шт.

28

87108677

DECAL

Torque, Wheel Bolt

2шт.
