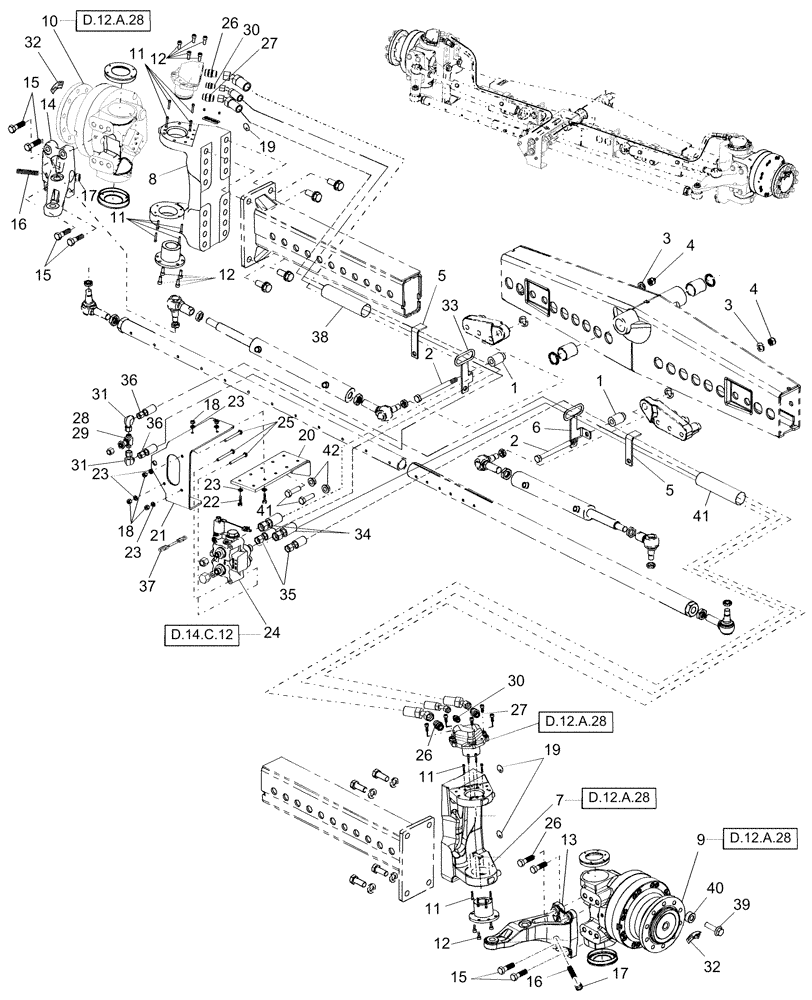

Запчасти Case IH AFX8010 (D.12. A) - POWERED REAR AXLE D - Travel

1

84334527

BUSHING

Spacer, 74 mm

2шт.

2

86509730

BOLT,Hex, M20 x 240mm, Cl 8.8

2шт.

3

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

2шт.

4

84100564

LOCK NUT,M20

2шт.

5

87281646

BRACKET

Hose Guide

2шт.

6

87281645

GUIDE

Hose, LH

1шт.

7

87281647

FRAME

LH

1шт.

8

87281648

FRAME

RH

1шт.

9

87281652

HYDRAULIC MOTOR,2099CC

LH

1шт.

87281652R

REMAN-HYD MOTOR

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

1шт.

87281652C

CORE-MOTOR HYDRAULIC

Retun Number

1шт.

10

87281653

HYDRAULIC MOTOR

RH

1шт.

87281653R

REMAN-HYD MOTOR

AFX8010 PIN HAJ105105 THRU HAJ199999 AFX8010 (3/03-9/06)

1шт.

87281653C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

11

9515561

HEX SOC SCREW,M6 x 35mm, Cl 12.9

16шт.

12

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

18шт.

13

87281649

BRACKET

LH

1шт.

14

87281650

BRACKET

RH

1шт.

15

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

8шт.

16

87035487

SET SCREW,M20 x 100mm, Cl 8.8

2шт.

17

9847024

NUT,M20, Cl 10

2шт.

18

412141

NUT,M10 x 1.5, Cl 8

5шт.

19

84334828

DECAL

100 Hour Lube

4шт.

20

9512254

BRACKET

Valve

1шт.

21

87281651

BRACKET

Valve Mount

1шт.

22

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

23

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

7шт.

24

87280433

VALVE

Selector

1шт.

24

87281708

VALVE

Selector

1шт.

25

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

3шт.

26

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

2шт.

27

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

2шт.

28

86639082

TEE,13/16"-16 ORFS, Blkhd Br

1шт.

29

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

30

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

31

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

2шт.

32

87108678

DECAL

Wheel Bolt Torque

2шт.

33

87283481

GUIDE

Guide, Hose, RH

1шт.

34

87281007

HYDRAULIC HOSE,19.05mm ID x 1828.8mm L

PRA, Forward

2шт.

35

87281008

HYDRAULIC HOSE,15.88mm ID x 1828.8mm L

PRA, Reverse

2шт.

36

87281009

HYDRAULIC HOSE,7.92mm ID x 1955.8mm L

PRA, Case Drain

2шт.

37

84807867

WIRE HARNESS

PRA

1шт.

38

84800193

PROTECTIVE SLEEVE,60.3mm ID x 1219mm L

48" Length

2шт.

39

87035472

FLANGE BOLT,Hex Flg, M20 x 1.5 x 70, Cl 10.9

20шт.

40

87281709

SPACER,.81" ID x 1.75" OD x .79" L

Wheel Bolt

20шт.

41

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

42

280375

NUT,3/4"-10, GC

2шт.
