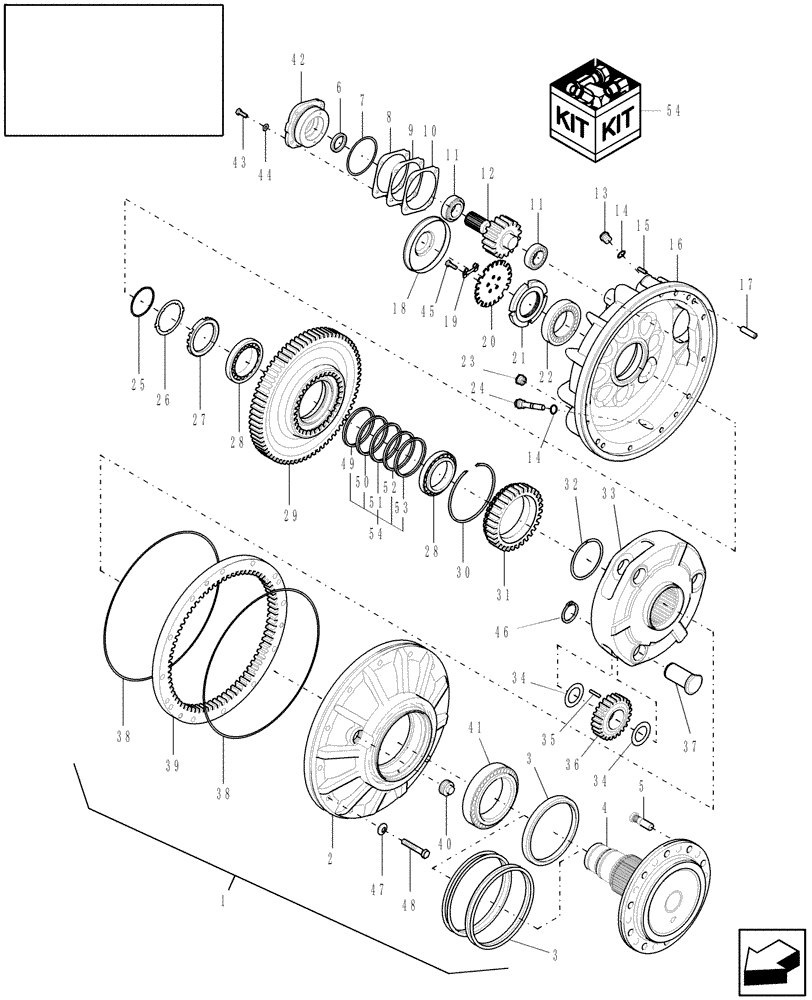

Запчасти Case IH AFX8010 (D.10.A.42[3]) - PLANETARY FINAL DRIVE, PIN HAJ106401 AND AFTER D - Travel

1

84453963

FINAL DRIVE

FINAL REDUCTION GEARBOX Final Drive, Standard

1шт.

For NA Only

1шт.

1

84407411R

REMAN-FINAL DRIVE

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, PIN HAJ106401 AND AFTER, FINAL REDUCTION GEARBOX Final Drive, Standard, Reman for New PN 84453963 (3/03-9/06)

1шт.

1

84407411C

CORE-FINAL DRIVE

Return Number

1шт.

1

84453962

FINAL DRIVE

1шт.

For EU Only

1шт.

1

84453965

FINAL DRIVE

FINAL REDUCTION GEARBOX Final Drive

1шт.

For NA Only

1шт.

With Mud Seal

1шт.

1

84407411R

REMAN-FINAL DRIVE

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, PIN HAJ106401 AND AFTER, FINAL REDUCTION GEARBOX Final Drive, With Mud Seal (3/03-9/06), Reman for New PN 84453965

1шт.

1

84407411C

CORE-FINAL DRIVE

Return Number

1шт.

1

84453964

FINAL DRIVE

1шт.

With Mud Seal

1шт.

1

84453964

FINAL DRIVE

1шт.

For EU Only

1шт.

2

84448821

HOUSING

Standard

1шт.

2

84074833

HOUSING

Mud

1шт.

3

9832264

SEAL,198.3mm ID x 230mm OD x 13mm Thk

Standard

1шт.

3

84074404

SEAL,272.47mm ID x 297.87mm OD x 39mm Thk

Seal, Mud

1шт.

4

84449320

DRIVEN SHAFT

Wheel

1шт.

For NA Only

1шт.

For Standard Only

1шт.

4

84449573

AXLE

1шт.

For EU Only

1шт.

For Standard Only

1шт.

4

84449575

AXLE

1шт.

With Mud Seal

1шт.

For EU Only

1шт.

4

84449574

AXLE

Wheel

1шт.

For NA Only

1шт.

With Mud Seal

1шт.

5

87282493

STUD,M22 x 1.5 x 84mm

10шт.

For NA Only

1шт.

5

330291

WHEEL BOLT

10шт.

For EU Only

1шт.

6

5183845

SEAL

Shaft Seal

1шт.

7

84074393

O-RING,5mm Thk x 120mm ID, 70 Duro

NBR70

1шт.

8

84074713

SHIM,0.5mm Thk

1ARшт.

9

84074712

SHIM,130mm ID x 72.5mm OD x 0.2mm Thk

2ARшт.

10

84074711

SHIM,0.05mm Thk

2ARшт.

11

84074701

TAPERED BEARING,45mm ID x 80mm OD x 26mm W

2шт.

12

84449593

GEAR,18T

Driving, 18T

1шт.

13

150006

DRAIN PLUG,M24 x 1.5

Fill

1шт.

14

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING Washer, 28.9 OD x 24.3 ID x 2.0 Thk

2шт.

15

84074543

SET SCREW,Hex Soc, M16 x 30

3шт.

16

84819478

COVER

Inner Shell

1шт.

17

84074391

DOWEL,16mm OD x 60mm L

16 x 60, M8 Internal Thread

2шт.

18

84448749

COVER

1шт.

19

84448750

LOCKING PLATE

1шт.

20

84448751

LOCKING PLATE

1шт.

21

84818180

LOCK NUT,M90 x 2

1шт.

22

84074719

TAPERED BEARING,90mm ID x 145mm OD x 35mm W

1шт.

23

84071596

PLASTIC PLUG,M31 x 19mm

Sight, Lower, 26mm

2шт.

23

84817215

PLUG,3/4"

Plastic, Upper, 26 mm, Socket Head

2шт.

24

84074519

MAGNETIC PLUG,M24 x 1.5, 96L

PLUG, MAGNETIC

1шт.

25

84449172

SNAP RING,M92

(Out, 95.4 OD x 2.5 Thk)

1шт.

26

84449597

LOCKING PLATE

1шт.

27

84449598

LOCK NUT,M100 x 2

1шт.

28

84449190

TAPERED BEARING,100mm ID x 145mm OD x 24mm W

2шт.

29

84806528

GEAR,72T

72T x 33T

1шт.

30

84449173

SNAP RING,M199.5, Int.

(x 3 Thk)

1шт.

31

84806529

GEAR

33T

1шт.

32

84074395

SNAP RING,M123.6

(130.8 OD x 2.82 Thk)

1шт.

33

84449594

RETAINER

Carrier Planet

1шт.

34

84074023

SHIM,51.5mm ID x 80mm OD x 1mm Thk

6шт.

35

84074703

NEEDLE,8mm x 42mm

8 x 42

69шт.

36

84074702

PLANETARY GEAR,21T

21T

3шт.

37

84072219

PIN,50.5mm OD x 110.2mm L

100 x 50

3шт.

38

84074400

O-RING,4mm Thk x 500mm ID, 70 Duro

NBR70

2шт.

39

84074723

SPLINED RING,75T

1шт.

40

84074399

PLUG

HH, M45 x 1.5, Tapered

1шт.

41

84074720

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

1шт.

42

84449197

FLANGE

Housing, Bearing

1шт.

43

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

44

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

45

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

46

370008

SNAP RING,M50, Ext

3шт.

47

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

48

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

12шт.

49

87375317

SHIM,4.6mm Thk

1шт.

50

87357938

SHIM,4.65mm Thk

1шт.

51

87357939

SHIM,4.75mm Thk

1шт.

52

87380319

SHIM,4.85mm Thk

1шт.

53

87380320

SHIM,4.9mm Thk

1шт.

54

87358151

SHIM KIT

Includes: Refs. 49-53

1шт.
