Запчасти Case IH AFX8010 (D.10.A.40.01[1]) - FRONT AXLE D - Travel

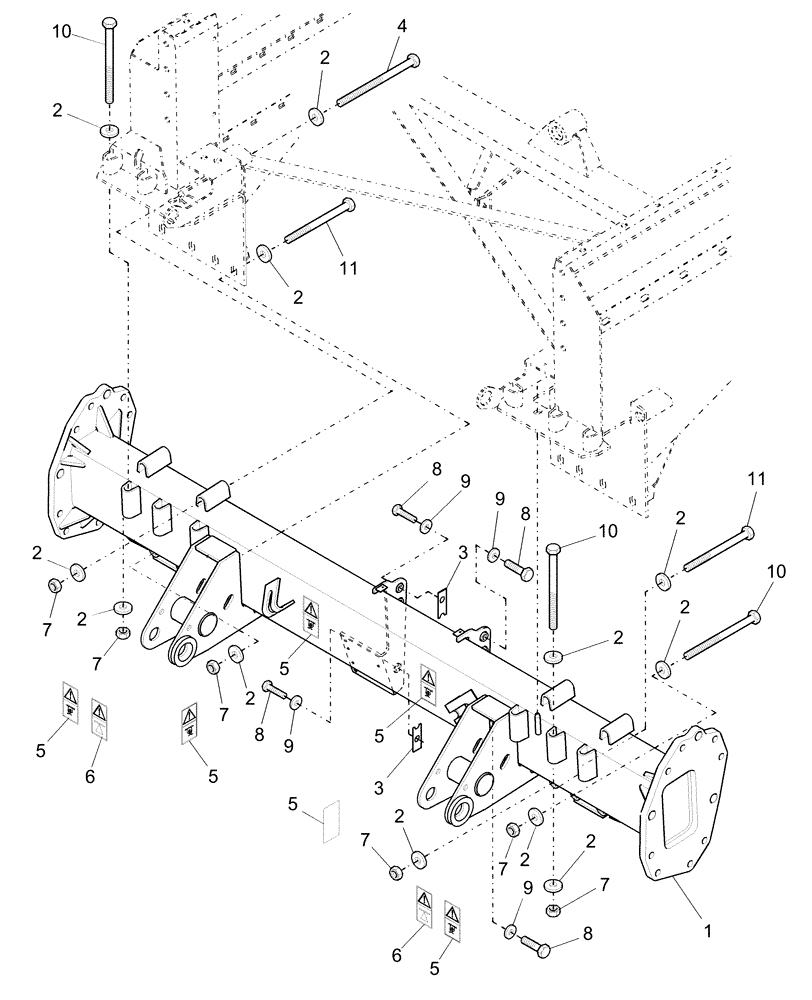

Схема запчастей Case IH AFX8010 - (D.10.A.40.01[1]) - FRONT AXLE D - Travel
5
2
3
5
5
10
2
1
8
5
7
9
9
2
8
3
9
7
5
2
6
7
10
8
2
10
11
7
9
8
2
2
2
2
4
2
6
2
2
7
11
7
2
5

Артикул

Название

Примечание

Количество

1

87284174

FRONT AXLE

Axle, Includes Ref. 5 & 6 - Was 86995736

1шт.

For NA Only

1шт.

1

87587580

FRONT AXLE

1шт.

For NA Only

1шт.

1

87587577

FRONT AXLE

1шт.

For EU Only

1шт.

2

84439733

WASHER,20.5mm ID x 49mm OD x 8mm Thk

Lock

32шт.

3

84073986

SHIM,87mm x 30mm x 2.14mm Thk

2шт.

4

84037083

BOLT,Hex, M20 x 260mm OAL, Cl 8.8

4шт.

5

84100296

DECAL

Tie-Down

1шт.

5

449973

DECAL

Towhook Direction

1шт.

For EU Only

1шт.

6

84078384

DECAL

Jack Point

2шт.

7

9706694

NUT,Hex, M20, Cl 8

16шт.

8

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

6шт.

9

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

6шт.

10

381523

BOLT,Hex, M20 x 2.5 x 210mm OAL, Cl 8.8

10шт.

11

384197

BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8

2шт.

Выбрано товаров: 18
