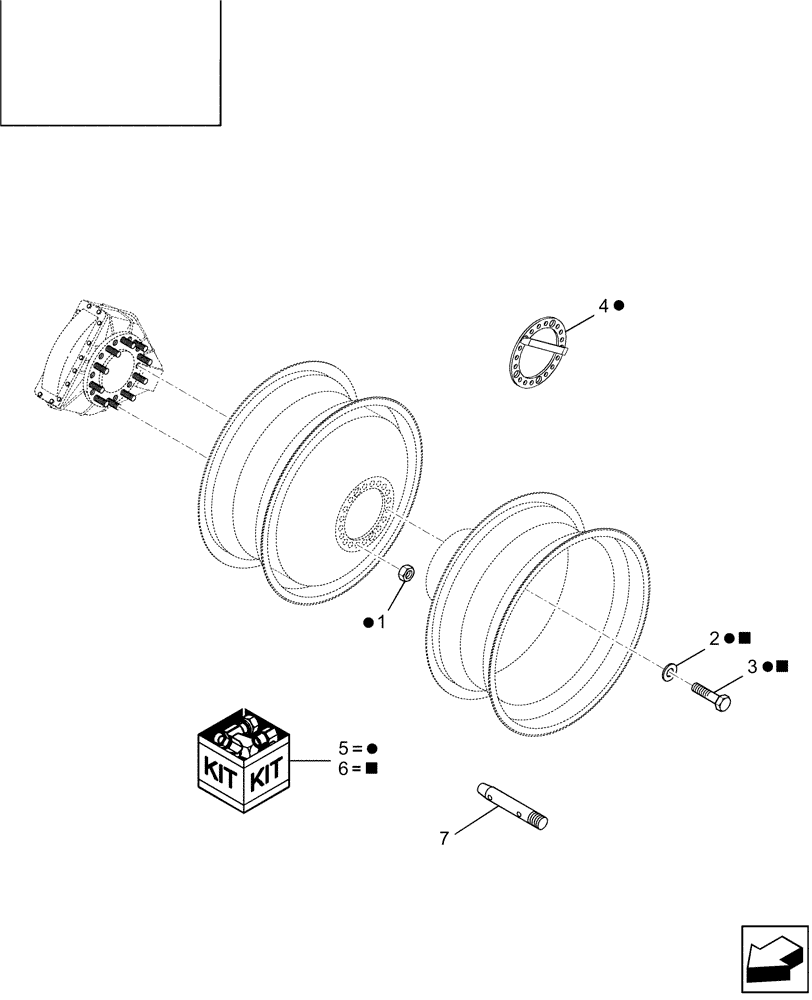

Запчасти Case IH AFX8010 (D.50.C.60[1]) - INSTALLATION KIT FOR DOUBLE WHEEL RIMS, PRIOR TO PIN XXXXXX C - Power Train

1

336945

WHEEL NUT,M22 x 1.5, Cl 10

10шт.

2

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

20шт.

3

84076627

BOLT,Hex, M22 x 1.5 x 65mm, Cl 10.9

20шт.

3

87029972

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

20шт.

3

87282493

STUD,M22 x 1.5 x 84mm

20шт.

4

87280385

SPACER

2шт.

5

87280417

KIT

Fixation - Includes Ref. 1, 2, 3 & 4 (87282493 Stud NOT Included)

1шт.

6

87283866

KIT

Fixation - Includes Ref. 2, 3 (87029972) & 7 (87282493 NOT Included)

1шт.

7

87283521

STUD,M22 x 180

2шт.
