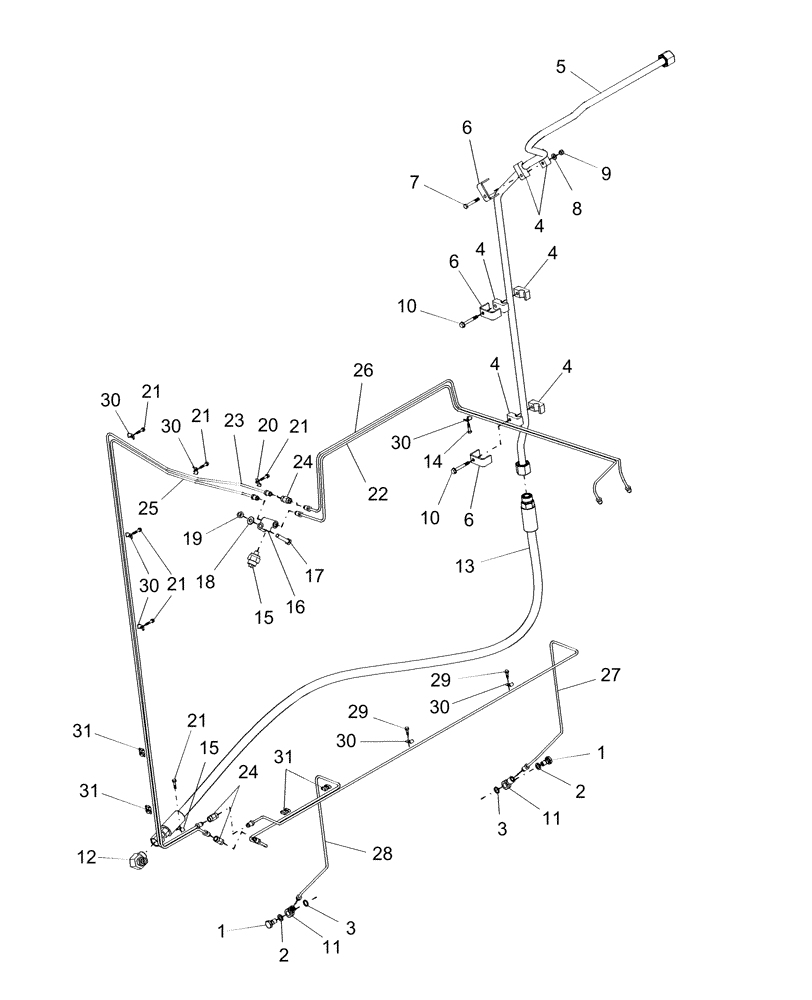

Запчасти Case IH AFX8010 (D.30.C[3]) - BRAKE LINES- SERVICE AND PARKING - PRIOR TO PIN HAJ105201 C - Power Train

1

9832304

BANJO BOLT,M10 x 1 x 19.50mm

1шт.

2

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

2шт.

3

355607

SEALING WASHER,15.5mm OD x 12mm ID x 1.5mm Thk

SEALRING

2шт.

4

433008

CLAMP

Tube

6шт.

4

433007

CLAMP

, Start Serial: HAJ105207

6шт.

5

87000673

HYD TUBE,0.50" OD

Park Brake Release - Valve to Hose

1шт.

5

87109729

HYD TUBE

, Start Serial: HAJ105207

1шт.

6

442340

SUPPORT

Tube Clamp

3шт.

6

433100

SUPPORT

, Start Serial: HAJ105207

3шт.

7

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

7

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

, Start Serial: HAJ105207

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

86900242

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 45

2шт.

10

87028761

SELF-TAP SCREW,6.3mm OD x 1.8 x 50mm

, Start Serial: HAJ105207

2шт.

11

9832303

FITTING

Banjo

1шт.

12

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

Tube

1шт.

12

87106484

FLEXIBLE HOSE

, Start Serial: HAJ105207

1шт.

13

87280111

HOSE

1шт.

14

86979018

SELF-TAP SCREW,Flat Hd, M4.2 x 22mm

1шт.

14

87016553

SELF-TAP SCREW,Hex Hd, M4.8 x 19

, Start Serial: HAJ105207

1шт.

15

354372

PRESSURE SWITCH

Brake

1шт.

16

9505391

TEE

1шт.

17

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

19

9706690

NUT,M8 x 1.25, Cl 8

1шт.

20

FOR336748

CLAMP

Tube

3шт.

20

84814932

CLAMP,5mm ID, 4.8mm Bolt Hole, J Type

Tube, Start Serial: HAJ105207

3шт.

21

86979018

SELF-TAP SCREW,Flat Hd, M4.2 x 22mm

6шт.

22

86976346

TUBE,4.75 mm OD

Brake, Upper Right

1шт.

23

86976349

TUBE,4.75 mm OD

Brake, Mid Left

1шт.

24

84062540

HYD CONNECTOR

3шт.

25

86976350

TUBE,4.75 mm OD

Brake, Mid Right

1шт.

26

86976345

TUBE,4.75 mm OD

Brake, Upper Left

1шт.

27

87105728

TUBE,4.75 mm OD

Brake, Lower Left

1шт.

28

87105731

TUBE,4.75 mm OD

Brake, Lower Right

1шт.

29

87024982

SELF-TAP SCREW,Flat Hd, M4.2 x 22mm

2шт.

30

FOR336760

CLAMP

Tube

6шт.

30

84814933

CLAMP

Tube, Start Serial: HAJ105207

6шт.

31

87000394

CLIP,4.75mm ID x 17mm OAL x 6.9mm Thk

Tube

4шт.
