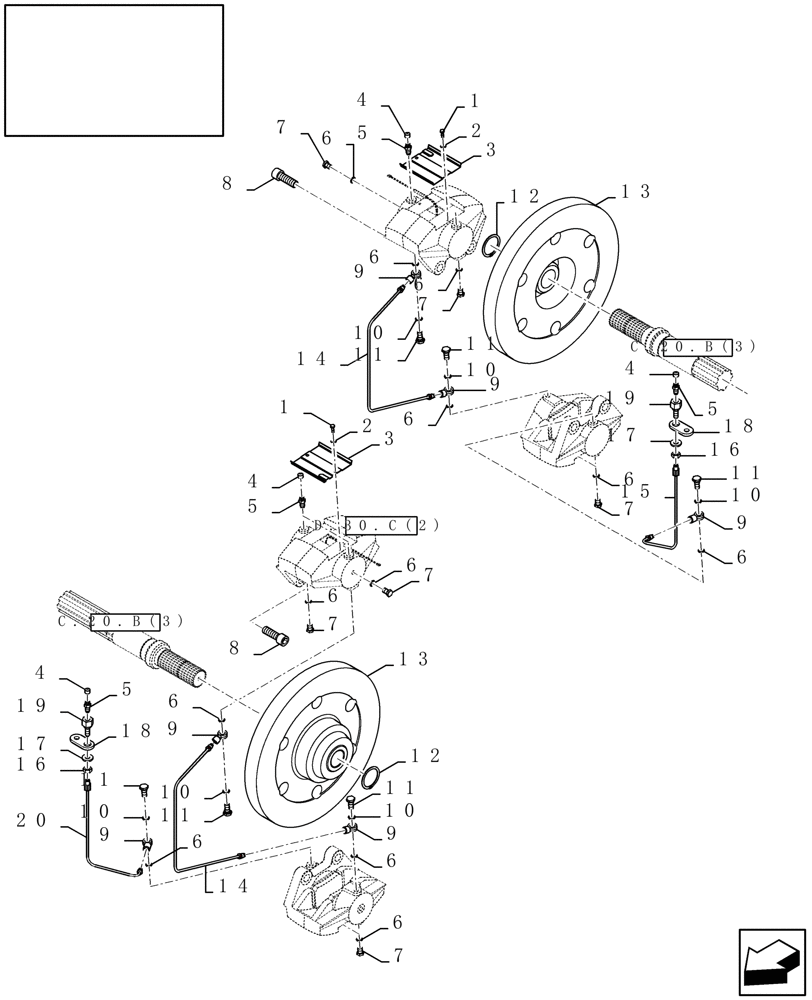

Запчасти Case IH AFX8010 (D.30.C[1]) - SERVICE BRAKES C - Power Train

1

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

4шт.

2

80322356

WASHER

M5

4шт.

3

84004317

PLATE

2шт.

4

89835349

CAP

6шт.

5

89832308

SCREW

Venting

6шт.

6

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

14шт.

7

89832307

SCREW

Sealing

8шт.

8

89817243

SCREW

Cylinder Hd

8шт.

9

89832303

FITTING

Banjo

6шт.

10

80355607

SEALING RING

SEALRING

6шт.

11

89832304

BANJO BOLT

6шт.

12

370007

SNAP RING,M45, Ext

2шт.

13

84071143

BRAKE DISC,330mm OD

For 16/71 Differential

2шт.

13

84071125

BRAKE DISC

For 20/61 Differential

2шт.

14

84441718

TUBE,4.75 mm DIA x 163, 152 mm L

For 16/71 Differential

2шт.

14

84073447

TUBE

For 20/61 Differential

2шт.

15

84989927

HYD TUBE,4.75 mm DIA x 253, 122 mm L

Brake, For 16/71 Differential

1шт.

15

84431163

TUBE,4.75 mm DIA

Brake, For 20/61 Differential

1шт.

16

84022934

NUT,M10 x 1, Cl 8

2шт.

17

80394629

LOCK WASHER

Heat-treated, M10

2шт.

18

84075471

PLATE

2шт.

19

84062542

HYD CONNECTOR

2шт.

20

84989946

BRAKE LINE

For 16/71 Differential

1шт.

20

84431161

BRAKE LINE

For 20/61 Differential

1шт.
