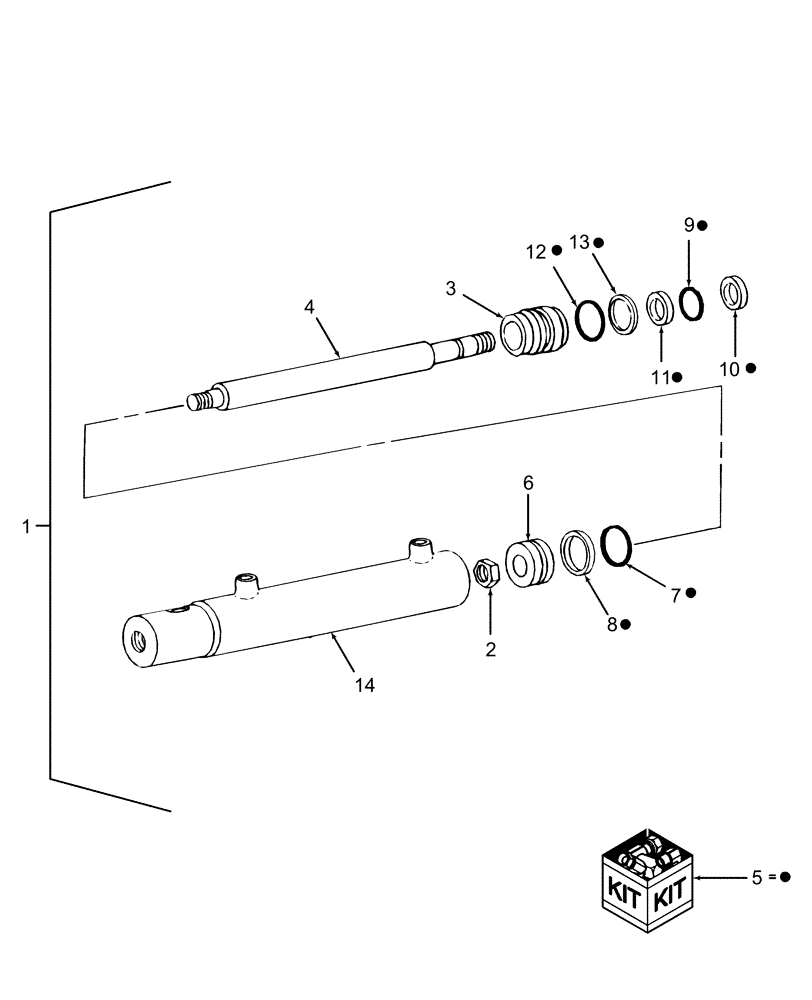

Запчасти Case IH AFX8010 (D.20.C.27) - CYLINDER, STEERING C - Power Train

1

84814043

STEERING CYLINDER,36mm Rod, 340mm Stroke

1шт.

2

87629

NUT,5/8"-11, GB

1шт.

3

86590990

Cylinder Head

1шт.

4

86590954

Piston

1шт.

5

84334447

SEAL KIT

Includes: Ref. 7, 8, 9, 10, 11, 12 & 13

1шт.

6

86511736

PISTON

1шт.

7

86570920

SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk

Piston

1шт.

8

771701

WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk

1шт.

9

9600664

SEAL,35.05mm ID x 44.2mm OD x 7.37mm Thk

1шт.

10

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

1шт.

11

86571906

WEAR RING

1шт.

12

510121

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

13

86502489

WASHER,54.08mm ID x 58.06mm OD x 1.09mm Thk

1шт.

14

NS

NOT SERVICED

Barrel

1шт.
