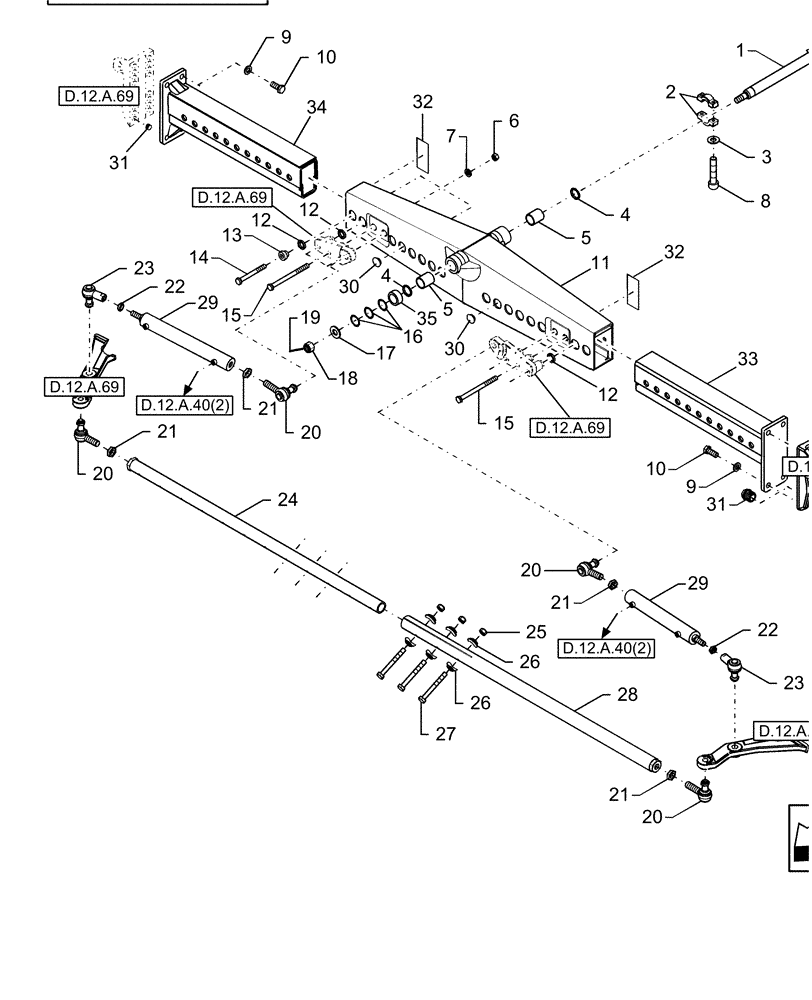

Запчасти Case IH AFX8010 (D.12.A.40[1]) - CENTRAL STEERING BRIDGE, POWERED & HEAVY DUTY, W/EXTENSIONS C - Power Train

1

84074397

AXLE

1шт.

2

84077496

CLAMP

2шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

4

84069736

SEALING RING,50mm ID x 60mm OD x 6mm Thk

2шт.

5

84334438

BUSHING,50mm ID x 60mm OD x 70mm L

Bushing

2шт.

6

84100564

LOCK NUT,M20

10шт.

7

89850384

WASHER

10шт.

8

84015950

HEX SOC SCREW,M10 x 50mm, Cl 8.8

2шт.

9

84015771

WASHER,25mm ID x 45mm OD x 6mm Thk

8шт.

10

84141241

BOLT,Hex, M24 x 3 x 60mm, Cl 12.9

8шт.

11

84074066

REAR AXLE

1шт.

11

87284186

AXLE

, Start Year: 01-JAN-04

1шт.

12

84334526

WASHER,33mm ID x 47mm OD x 8mm Thk

6шт.

13

84334525

BUSHING,32mm ID x 45mm OD x 33mm L

4шт.

14

412290

BOLT,M20 x 2.5mm x 180mm, Cl 8.8

4шт.

15

84037083

BOLT,Hex, M20 x 260mm OAL, Cl 8.8

6шт.

16

539450

SHIM,50mm ID x 62mm OD x 0.5mm Thk

3шт.

17

80327802

WASHER

1шт.

18

80390822

SLOTTED NUT

Slotted, M30 x 1.5

1шт.

19

80130016

COTTER PIN

M6.3 x 63

1шт.

20

84073399

BALL JOINT

4шт.

21

100034

NUT,M30 x 1.5, Cl 8

4шт.

22

412321

NUT,M26 x 1.5, Cl 8

2шт.

23

84814042

BALL JOINT

2шт.

24

84074074

TRACK ROD ASSY

RH

1шт.

25

80412141

LOCK NUT

Lock, M10 x 1.5

3шт.

26

80379401

CLAMP

Hose

6шт.

27

120074

BOLT,Hex, M10 x 90, 8.8

3шт.

28

84074075

TRACK ROD ASSY

LH

1шт.

29

84814043

STEERING CYLINDER,36mm Rod, 340mm Stroke

Complete, Refer to Separate Breakdown

2шт.

30

84440667

PLUG

12шт.

31

84439474

PLUG

12шт.

32

84439510

DECAL

2шт.

33

84461070

EXTENSION

LH

1шт.

34

84461068

EXTENSION

RH

1шт.

35

87284194

SPACER

Pivot

1шт.
