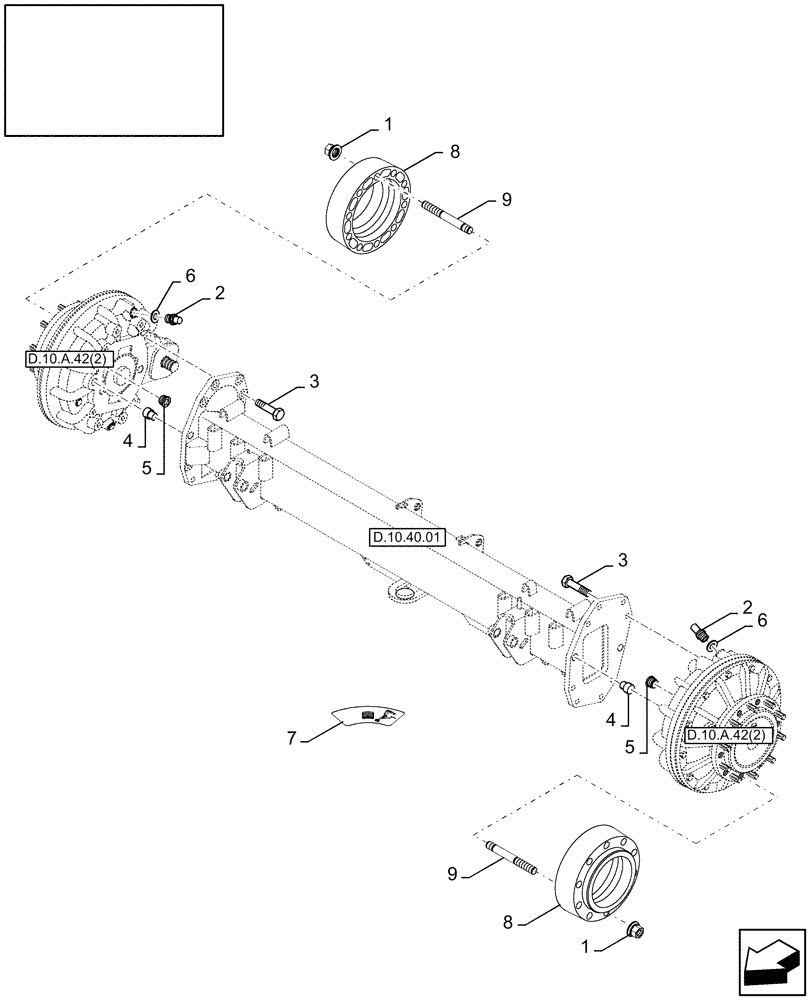

Запчасти Case IH AFX8010 (D.10.A.42[1]) - PLANETARY FINAL DRIVE MOUNTING HARDWARE C - Power Train

1

748961

WHEEL NUT

20шт.

2

84068655

BREATHER

2шт.

3

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

16шт.

4

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

5

84817215

PLUG,3/4"

2шт.

6

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

7

87283497

DECAL

Replaces 87108676

2шт.

8

84989374

SPACER

2шт.

9

84989380

STUD,M22 x 192

20шт.
