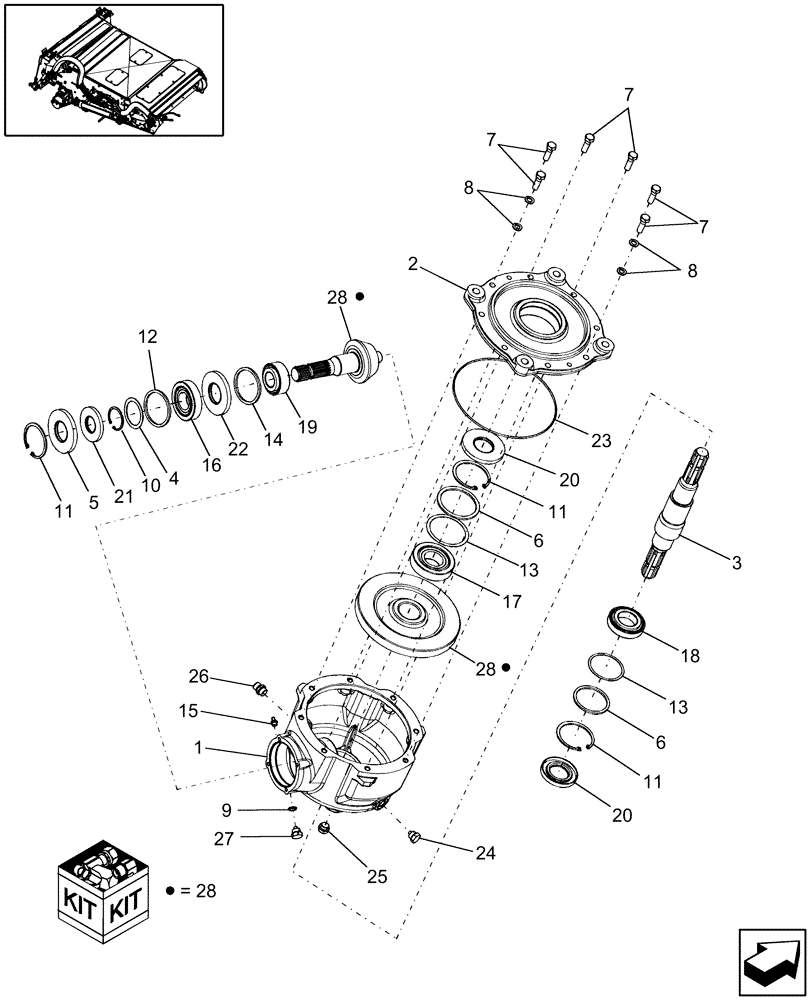

Запчасти Case IH AFX8010 (C.42.B.45[1]) - GEARBOX, HEADER - PRIOR TO P.I.N. HAJ105720 C - Power Train

86999169

GEARBOX

1шт.

87610913R

REMAN-GEARBOX

AFX8010 Prior To P.I.N. HAJ105720 , Reman For New P/N's 86999169 & 87610913,

1шт.

87610913C

CORE-GEARBOX

Return Number

1шт.

1

87282027

HOUSING

1шт.

2

87282028

GEARBOX

1шт.

3

87282029

SHAFT

1шт.

4

87282030

SHIM

1шт.

5

87282031

PLATE

1шт.

6

87282032

SHIM

2шт.

7

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

6шт.

8

892-11010

LOCK WASHER,M10

6шт.

9

933697R1

SEALING RING,M10 x 13.5 x 1

1шт.

10

800-5135

SNAP RING,M35, Ext, Hvy

1шт.

11

800-6172

SNAP RING,M72, Int, Hvy

3шт.

12

87282026

SHIM

Kit, 35 mm ID

1шт.

13

87282023

SHIM KIT

Kit, 72 mm ID

2шт.

14

87439525

SHIM

Kit, 79 mm ID

1шт.

15

933781R1

LUBE NIPPLE,M10 x 1

1шт.

16

87282046

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

1шт.

17

905844R91

TAPERED BEARING,35 mm ID x 72 mm OD x 19 mm

1шт.

18

93296C1

BEARING ASSY,35 mm ID x 72 mm OD x 28 mm

1шт.

19

87282036

BEARING ASSY,36.512 mm ID x 79.375 mm OD x 29.37 mm

1шт.

20

87282015

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

2шт.

21

87282037

OIL SEAL

1шт.

22

87282038

OIL SEAL

1шт.

23

238-5265

O-RING,0.139" Thk x 7.73" ID, -265, Cl 5, 75 Duro

1шт.

24

87282043

MAGNETIC PLUG

Drain

1шт.

25

87282048

MAGNETIC PLUG

1шт.

26

87282045

SIGHTGLASS

Level

1шт.

27

87282049

MAGNETIC PLUG

Breather

1шт.

28

87282039

GEAR SET

Bevel

1шт.
