(C.42.B.43.42[2]) - SHAFT, DRIVE, LOWER - FEEDER / HEADER

Запчасти Case IH AFX8010 (C.42.B.43.42[2]) - SHAFT, DRIVE, LOWER - FEEDER / HEADER C - Power Train

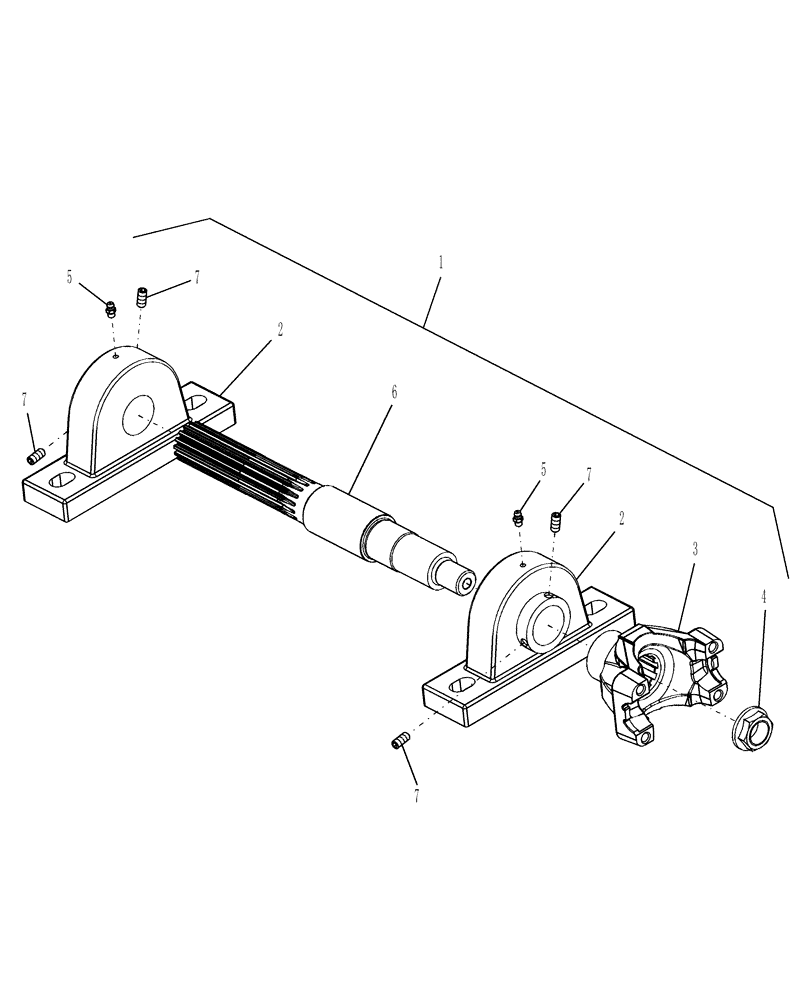

Схема запчастей Case IH AFX8010 - (C.42.B.43.42[2]) - SHAFT, DRIVE, LOWER - FEEDER / HEADER C - Power Train
7
7
4
7
3
7
2
5
5
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87280466

DRIVE SHAFT

Includes Ref. 2 - 6

1шт.

2

87457217

BEARING ASSY,40mm ID

Pillow Block

2шт.

3

87457218

YOKE

1шт.

4

L117413

NUT

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

87563868

FITTING,M8 x 1.17mm

Fitting, Lube

2шт.

6

NSS

NOT SOLD SEPARAT

Shaft

1шт.

7

877-11010

SET SCREW,Hex, M10 x 10mm

4шт.
