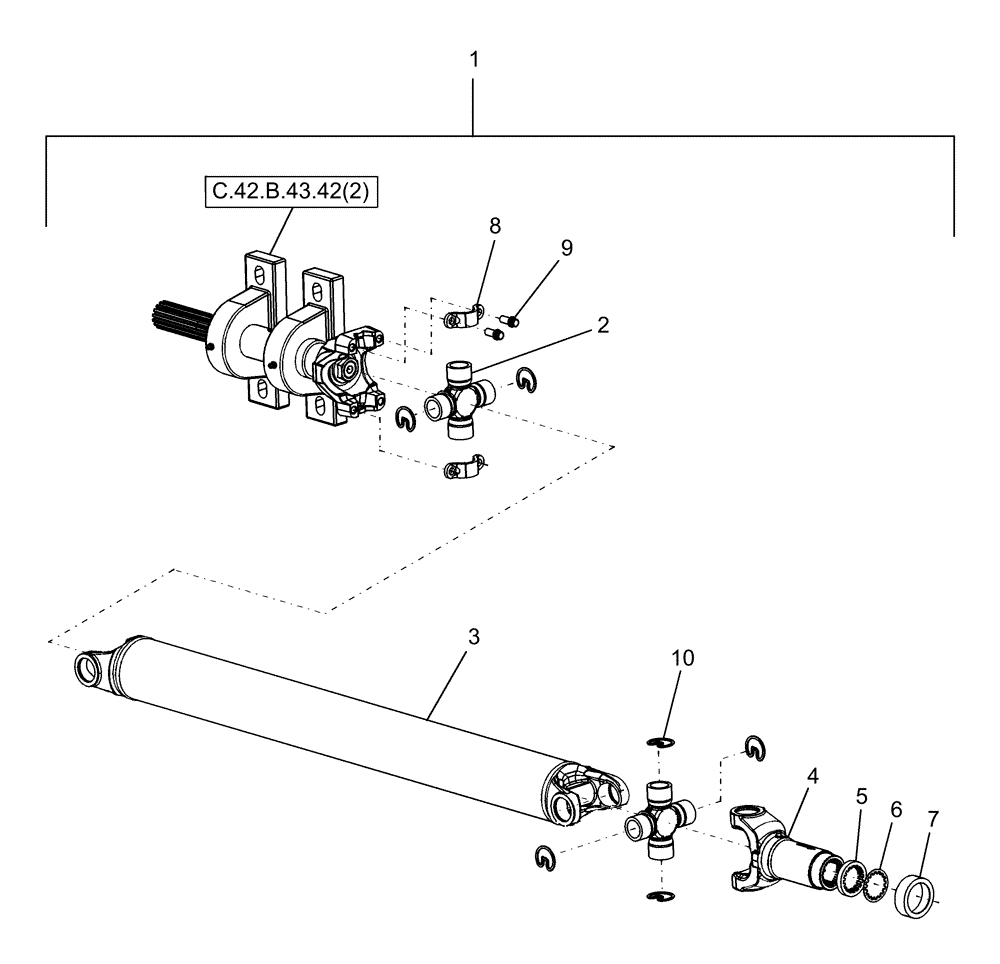

Запчасти Case IH AFX8010 (C.42.B.43.42[1]) - SHAFT DRIVE, LOWER - FEEDER / HEADER C - Power Train

1

87000205

DRIVE SHAFT

Includes 1 - 10

1шт.

2

87400942

UNIVERSAL JOINT

Joint

2шт.

3

87280465

Shaft

1шт.

4

87280468

SHAFT

Yoke

1шт.

5

87280475

SEAL,31.75mm ID x 49.02mm OD x 9.65mm Thk

Cork

1шт.

6

87280471

LOCK WASHER

Steel

1шт.

7

87109468

DUST CAP

1шт.

8

86976817

STRAP

Bearing Retaining

2шт.

8

9672925

SECURING STRAP

2шт.

9

87010436

12 PT SCREW,3/8"-24 x 1-1/5", Cl 8

4шт.

10

87280463

SNAP RING

6шт.
