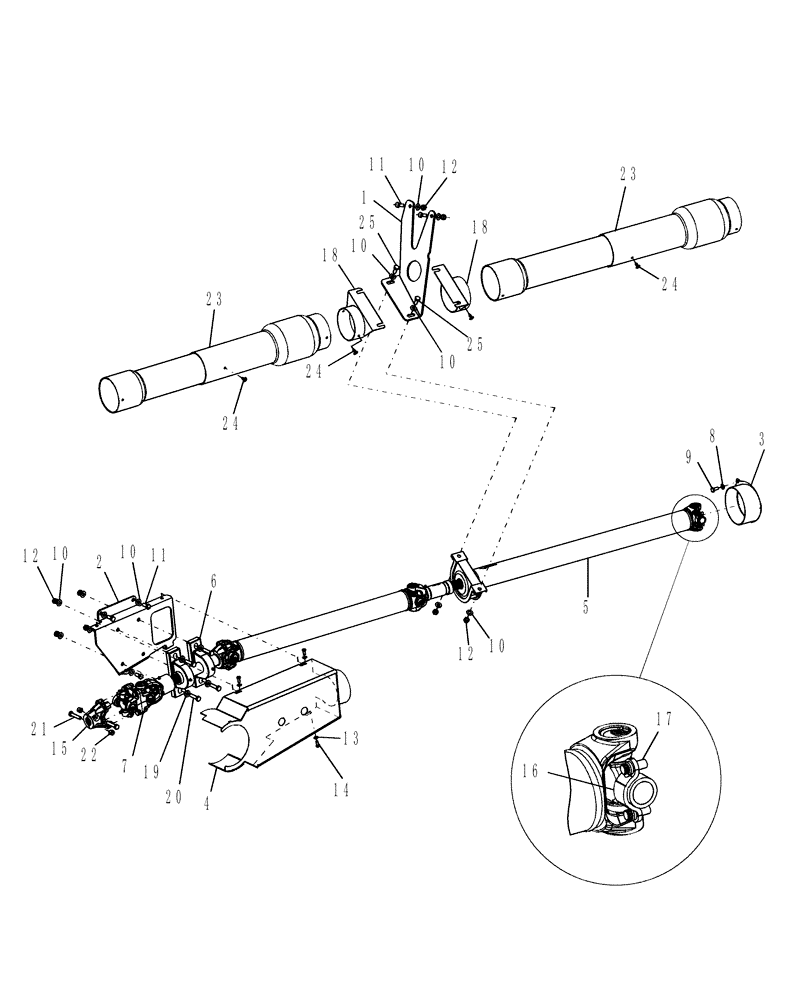

Запчасти Case IH AFX8010 (C.42.B.43) - DRIVE SHAFT - FEEDER / HEADER C - Power Train

1

87106570

SUPPORT

1шт.

2

87284593

BRACKET

1шт.

3

87107409

SHIELD

1шт.

4

87108306

SHIELD

1шт.

5

87000204

DRIVE SHAFT

Upper - See Fig. C.42.B.43.43 for Components

1шт.

6

87000205

DRIVE SHAFT

Lower - See Fig. C.42.B.43.42 for Components

1шт.

7

87000203

DRIVE SHAFT

Pivot - See Fig. K.25.E.41.10 (01) for Components

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

13шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

12

9706685

NUT,M12 x 1.75, Cl 8

8шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

87109469

YOKE

1шт.

16

86976817

STRAP

Bearing

2шт.

16

9672925

SECURING STRAP

2шт.

17

87010436

12 PT SCREW,3/8"-24 x 1-1/5", Cl 8

8шт.

18

86998389

BRACKET

Center

2шт.

19

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

21

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

2шт.

22

87021758

NUT,M12 x 1.75, Cl 10

2шт.

23

87106571

SHIELD

2шт.

24

87284693

FASTENER

Was 87000460

4шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.
