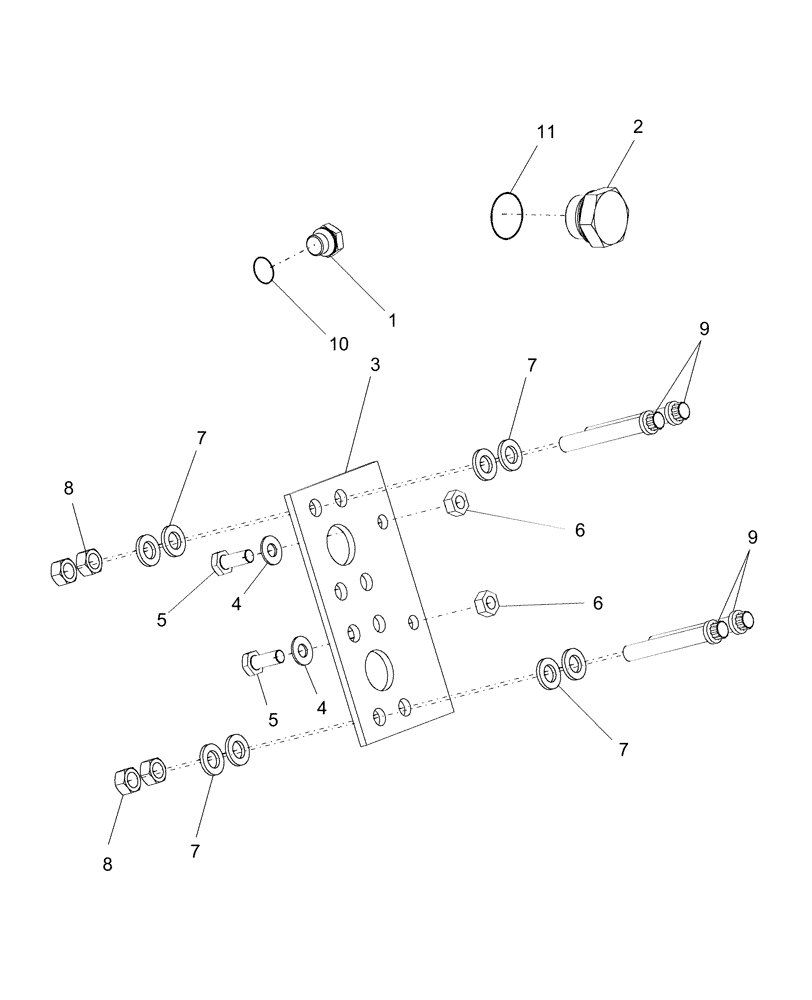

Запчасти Case IH AFX8010 (C.20.F.36) - HYDRO JUNCTION BOX PLUGS AND MOUNTING C - Power Train

1

86981620

PLUG,M16 x 1.5, ORB

Includes O-Ring

1шт.

2

87013333

PLUG,M33 x 2.0, ORB

Includes O-Ring

1шт.

3

86976664

PLATE

Connecting

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

100016

NUT,M10 x 1.5, Cl 8

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

8

337475

NUT,M12, Cl 10

8шт.

9

87020804

BOLT,Hex, M12 x 85mm, Cl 10.9

8шт.

10

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

M16

1шт.

11

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

M33

1шт.
