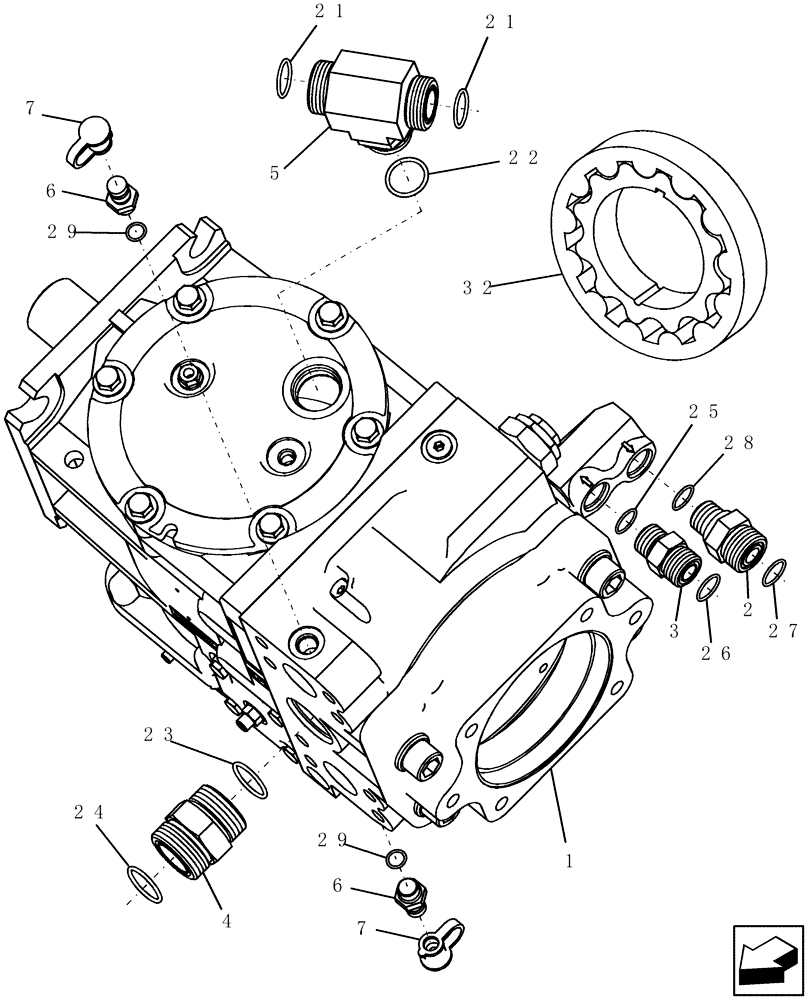

Запчасти Case IH AFX8010 (C.20.F.20) - PUMP, PROPULSION C - Power Train

1

87011462

HYDROSTATIC PUMP

Propulsion - 110 cc

1шт.

1

87011461

HYDROSTATIC PUMP,130 CC

Propulsion - 130 cc

1шт.

1

87010872

REMAN-HYDROSTAT PUMP

Remanufactured, HYDROSTATIC PUMP

1шт.

1

87010871

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

87510612

RE-MAN, 130 cc, Was 87010871

1шт.

1

87510613

CORE, 130 cc, Was 87010872

1шт.

2

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

3

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

1шт.

4

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

5

9628061

TEE

Tee

1шт.

6

86596853

QUICK MALE COUPLING,9/16"-18

2шт.

7

86502604

DUST CAP

2шт.

8

87051129

SEAL KIT

1шт.

9

87283364

SEAL

1шт.

10

87051130

VALVE

PTO Lube Relief, Includes Ref 17

2шт.

11

87051131

VALVE

Multi Function, Includes Ref. 30 & 31

2шт.

12

87051132

VALVE

EDC, Includes Ref 15, 16, 18, 19 & 20

1шт.

13

87051135

SHAFT

Shaft

1шт.

14

87051136

FITTING

Remote Filter, Includes Ref 21

1шт.

15

87051134

VALVE

Valve

1шт.

16

87051133

GASKET

Gasket

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

50458

O-RING,0.426" ID x 0.566" OD x 0.07"

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

515-22254

CLAMP,1", Insul, 5/16" Bolt

2шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

3шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

23

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

24

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

25

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

30

79291

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1шт.

31

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

32

87574437

PUMP

Pump Charge, Plan Drive 1 SPD, Services 87011461 Only

1шт.
