(C.20.F.19) - KIT, OIL COOL BYPASS - HYDRO DRIVE

Запчасти Case IH AFX8010 (C.20.F.19) - KIT, OIL COOL BYPASS - HYDRO DRIVE C - Power Train

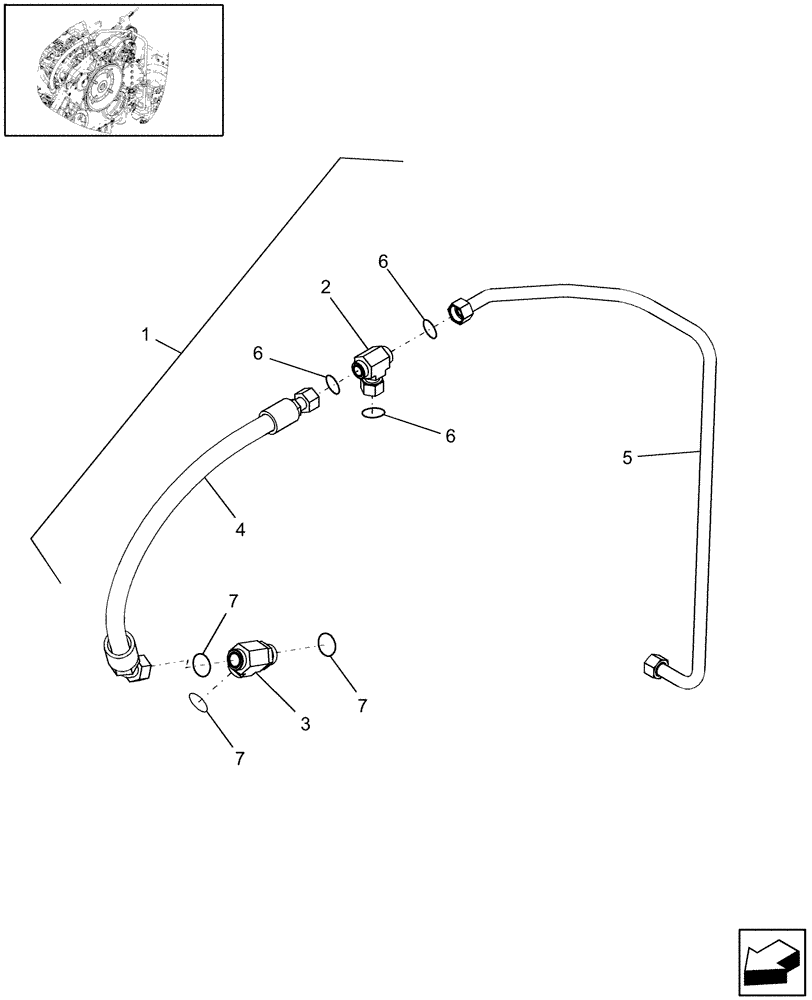

Схема запчастей Case IH AFX8010 - (C.20.F.19) - KIT, OIL COOL BYPASS - HYDRO DRIVE C - Power Train
6
7
3
6
7
5
1
4
6
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87283780

KIT

Bypass, Oil Cooling

1шт.

2

87301769

TEE,1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw Br

1шт.

3

86579708

TEE,1-11/16" - 12 ORFS x 1-11/16" - 12 ORFS x M42 x 2 ORB

1шт.

4

87283739

HOSE

Return, Manifold Bypass

1шт.

5

87283740

HYD TUBE

Regulator Valve Bypass

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

3шт.

Выбрано товаров: 7
