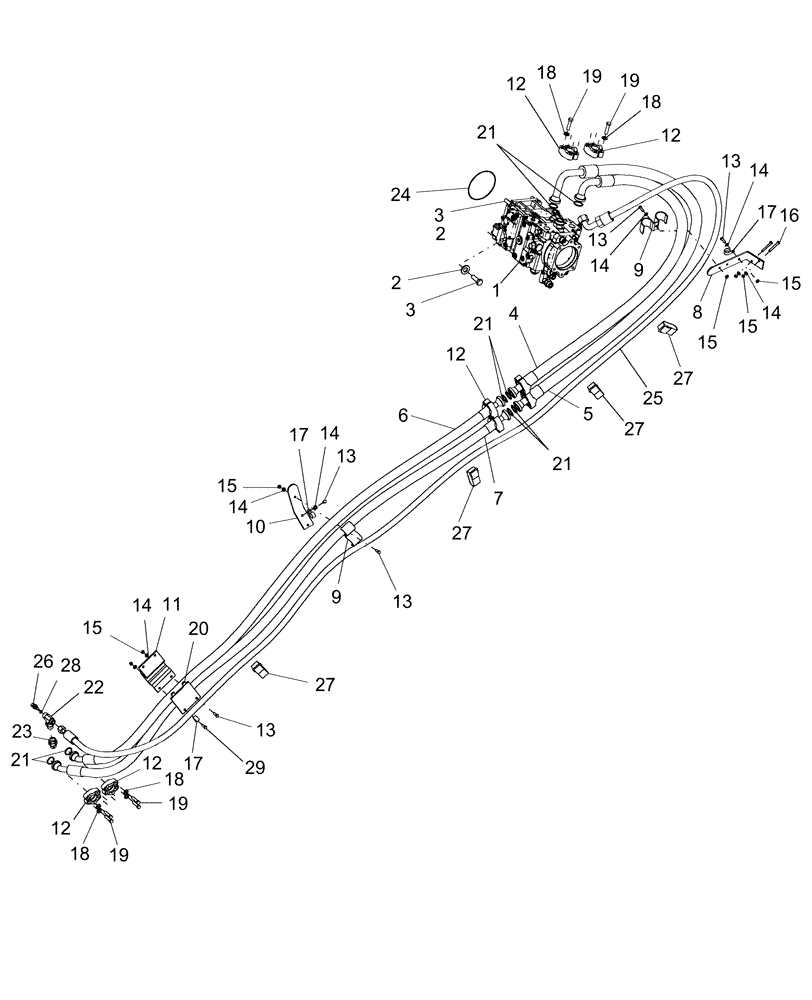

Запчасти Case IH AFX8010 (C.20.F) - HYDRO DRIVE, HEAVY DUTY C - Power Train

1

87011461

HYDROSTATIC PUMP,130 CC

Propulsion, 130 cc - LESS Connectors

1шт.

1

87010872

REMAN-HYDROSTAT PUMP

Remanufactured, HYDROSTATIC PUMP

1шт.

1

87010871

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

84058945

WASHER,16.5mm ID x 41mm OD x 6mm Thk

Replaces 86625266

4шт.

3

87303611

BOLT,Hex, M16 x 65mm, Cl 10.9

4шт.

4

86999714

HOSE

Drive Pump, A

1шт.

5

86999715

HOSE

Drive Pump, B

1шт.

6

86999716

HOSE

Drive Motor, A

1шт.

7

86999717

HOSE,31.5mm ID x 2840mm L

Drive Motor, B

1шт.

8

87108157

SUPPORT

Hose

1шт.

9

84053483

CLAMP

Hose

2шт.

10

87109782

BRACKET

Hose

1шт.

11

84069548

PLATE

1шт.

12

86980733

CLAMP

Split Flange

16шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

15

9706690

NUT,M8 x 1.25, Cl 8

7шт.

16

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

17

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

Replaces 86637977

3шт.

18

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

16шт.

19

87019710

BOLT,Hex, 1/2" - 13 x 2", Gr 8

16шт.

20

84069549

PLATE

Retention

1шт.

21

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

8шт.

22

87105734

TEE

Drain, Case

1шт.

23

87105733

REDUCER

1шт.

24

87017583

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

O.D. = 156mm

1шт.

25

87108040

HOSE

Drive Motor Case Drain

1шт.

26

86571273

SENSOR

1шт.

27

87108048

SECURING STRAP

4шт.

28

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.
