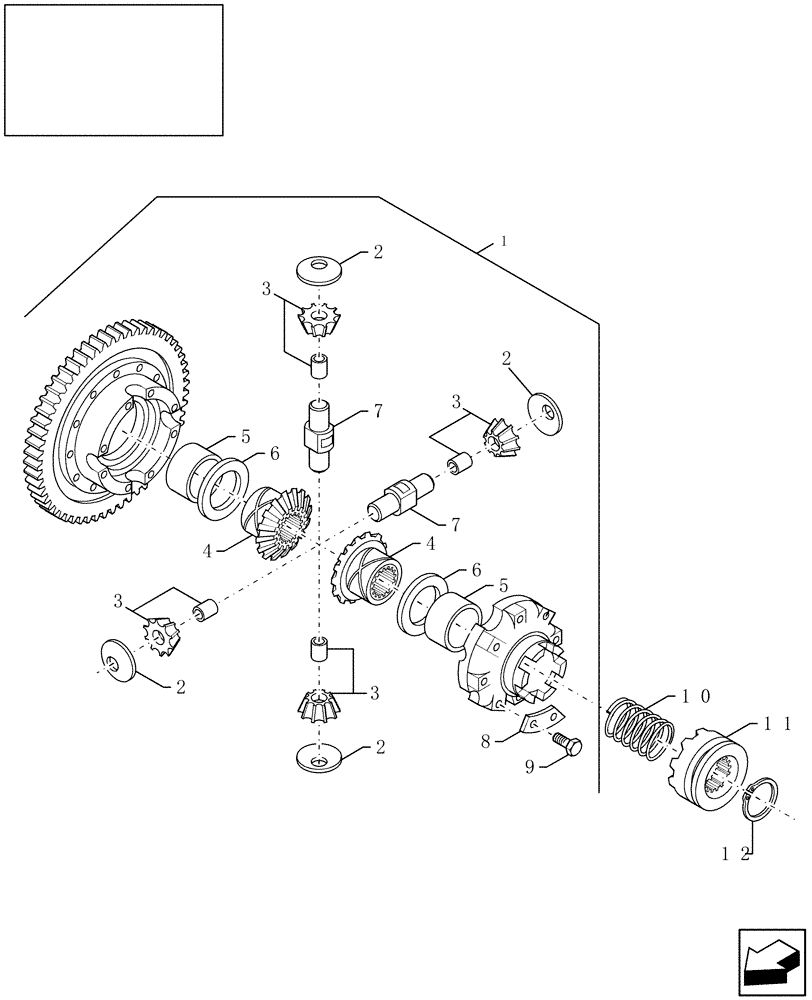

Запчасти Case IH AFX8010 (C.20.B.50) - DIFFERENTIAL C - Power Train

1

84071411

DIFFERENTIAL

16/71, Std

1шт.

1

84071412

DIFFERENTIAL

20/61, Std

1шт.

1

84071437

DIFFERENTIAL

16/71, W/Lock

1шт.

1

84071415

DIFFERENTIAL

20/61, W/Lock

1шт.

2

80210014

WASHER

Dished

4шт.

3

89850394

GEAR

Pinion

4шт.

4

89514042

PLANETARY GEAR

2шт.

5

89514039

BUSHING

2шт.

6

80210013

THRUST WASHER

2шт.

7

89514041

SHAFT

Satellite

2шт.

8

80331649

LOCKING PLATE

4шт.

9

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

8шт.

10

80455097

SPRING

For Differential W/Lock

1шт.

11

80455094

RING

For Differential W/Lock

1шт.

12

327911

CIRCLIP,55mm ID

For Differential W/Lock

1шт.
