Запчасти Case IH AFX8010 (C.20.B.05) - MECHANICAL TRANSMISSION, GEARSHIFT CONTROL C - Power Train

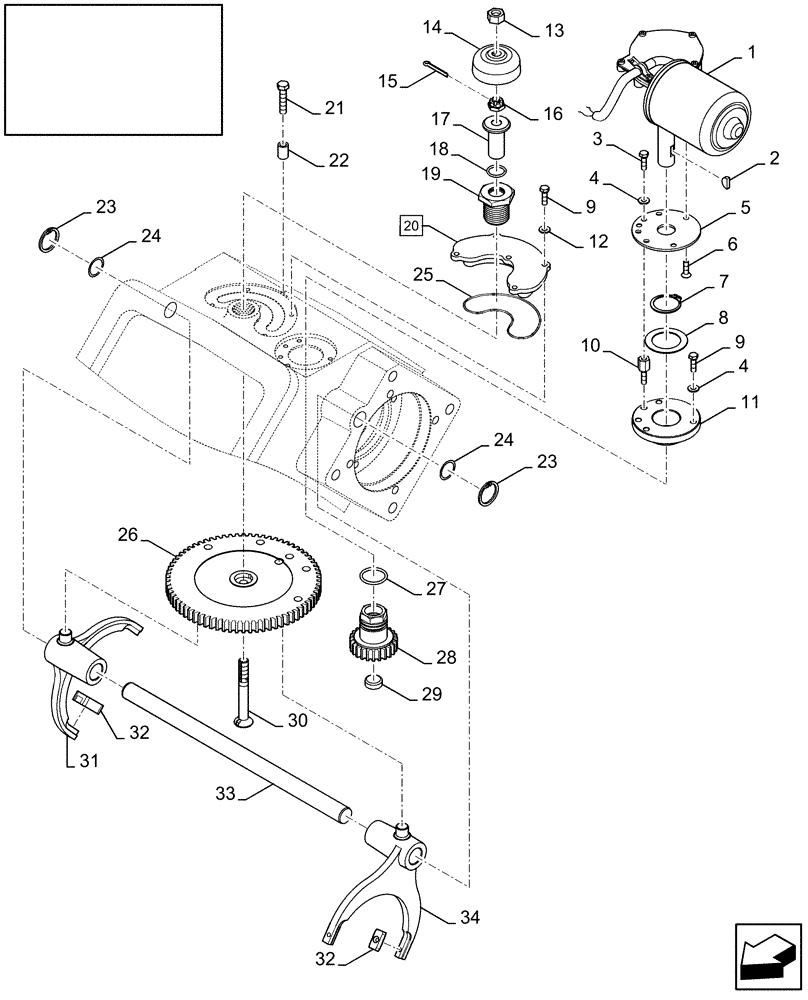

Схема запчастей Case IH AFX8010 - (C.20.B.05) - MECHANICAL TRANSMISSION, GEARSHIFT CONTROL C - Power Train
23
22
24
15
5
20
1
32
30
26
13
28
9
24
29
27
9
25
23
2
14
3
34
21
33
17
31
8
7
32
10
6
19
12
18
4
11
16
4

Артикул

Название

Примечание

Количество

1

84807563

ELECTRIC MOTOR

1шт.

1

84807563R

REMAN-ELECTRIC MOTOR

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03-9/06)

1шт.

84807563C

CORE-ELECTRIC MOTOR

Return Number

1шт.

2

84041731

WOODRUFF KEY,5mm W x 6.5mm H x 16mm L

1шт.

3

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

5

84071166

DISC

1шт.

6

300497

SCREW,Hex Soc Flat Hd, M6 x 16, 8.8

3шт.

7

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

8

442245

WASHER,35mm ID x 51.5mm OD x 0.8mm Thk

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

10

84071865

SCREW,Hex, M6 x 15mm

Distance

4шт.

11

87588654

SPACER

1шт.

12

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

5шт.

13

9706685

NUT,M12 x 1.75, Cl 8

1шт.

14

84072087

LID

1шт.

15

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

1шт.

16

84334523

SLOTTED NUT,M14 x 1.5, Cl 8

1шт.

17

84334799

BUSHING,12mm ID x 35mm OD x 51mm L

1шт.

18

304967

O-RING,2.5mm Thk x 20mm ID, Cl 6, 90 Duro

1шт.

19

84071821

THREADED INSERT

1шт.

20

84072805

SENSOR

Mechanical Transmission Gearshift Control (25)

1шт.

20

84269118R

REMAN-SENSOR

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Mechanical Transmision Gearshift Control (25) (3/03-9/06), Reman for New PN 84072805

1шт.

20

84269118C

CORE-SENSOR

Return Number

1шт.

21

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

22

84038824

BUSHING,9mm ID x 12mm OD x 20mm L

1шт.

23

84078050

SNAP RING,M22, Int

2шт.

24

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

2шт.

25

84042797

O-RING

1шт.

26

84607593

GEAR

1шт.

27

84021955

O-RING,3mm Thk x 29.2mm ID, 90 Duro

1шт.

28

87591787

GEAR

1шт.

29

396661

PLUG,22mm OD

1шт.

30

84334394

BOLT,CSK, M12 x 90mm

1шт.

31

84071587

SHIFTER FORK

1шт.

32

84432249

GUIDE

4шт.

33

84071538

SHAFT

1шт.

34

84071378

SHIFTER FORK

1шт.

Выбрано товаров: 38
