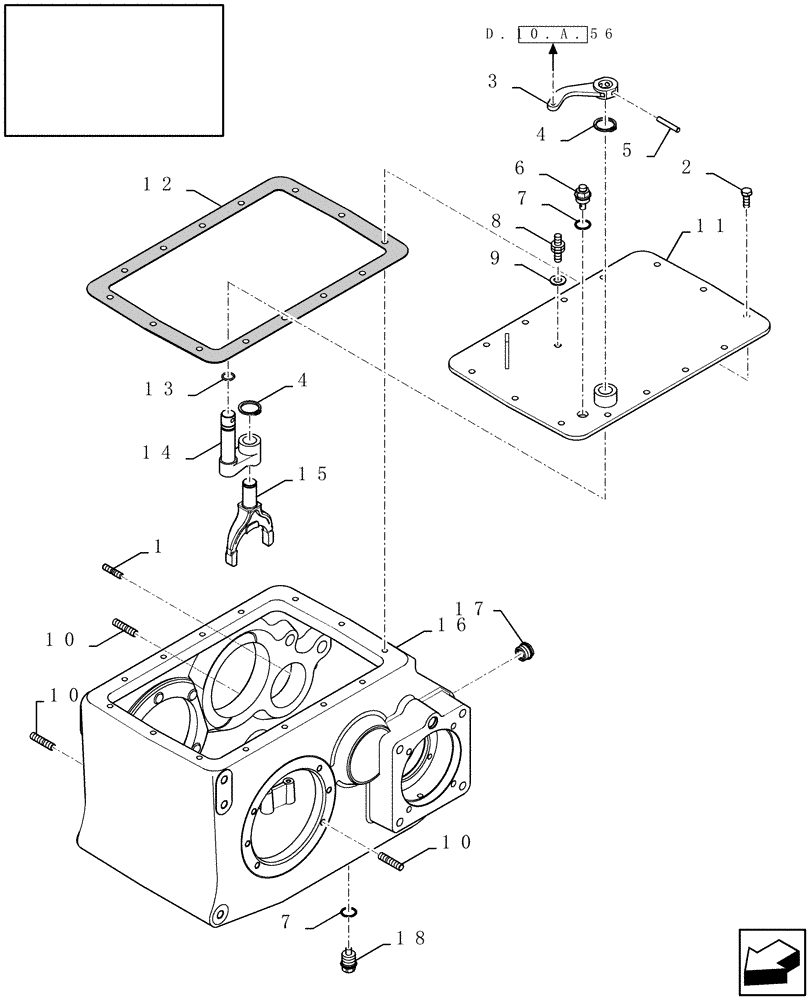

Запчасти Case IH AFX8010 (C.20.B[2]) - MECHANICAL TRANSMISSION HOUSING C - Power Train

1

110019

STUD,M10 x 37, Cl 8.8

5шт.

2

412621

BOLT,Hex, M10 x 30mm, Cl 8.8

14шт.

3

84334005

LEVER

1шт.

With Diff. Lock

1шт.

4

370002

CIRCLIP,M25, External

2шт.

With Diff. Lock

1шт.

5

9506888

PIN,7.95mm OD x 53mm L

1шт.

With Diff. Lock

1шт.

6

398136

BREATHER,M24 x 1.5

1шт.

7

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

8

84058860

SENSOR

Ground RPM

1шт.

9

355607

SEALING WASHER,15.5mm OD x 12mm ID x 1.5mm Thk

SEALRING

1шт.

10

350341

STUD,M12 x 50

15шт.

11

84072053

COVER

1шт.

With Diff. Lock

1шт.

11

84072051

COVER

1шт.

Standard

1шт.

12

84071961

GASKET,2mm Thk

1шт.

13

89818942

O-RING,0.103" Thk x 0.75" ID, -116, 70 Duro

1шт.

With Diff. Lock

1шт.

14

89818945

INSERT

1шт.

With Diff. Lock

1шт.

15

89818947

YOKE

1шт.

With Diff. Lock

1шт.

16

84439588

HOUSING

1шт.

17

84071596

PLASTIC PLUG,M31 x 19mm

Sight, Lower, 26mm

1шт.

18

336897

PLUG,M24 x 1.5

Stop

1шт.
