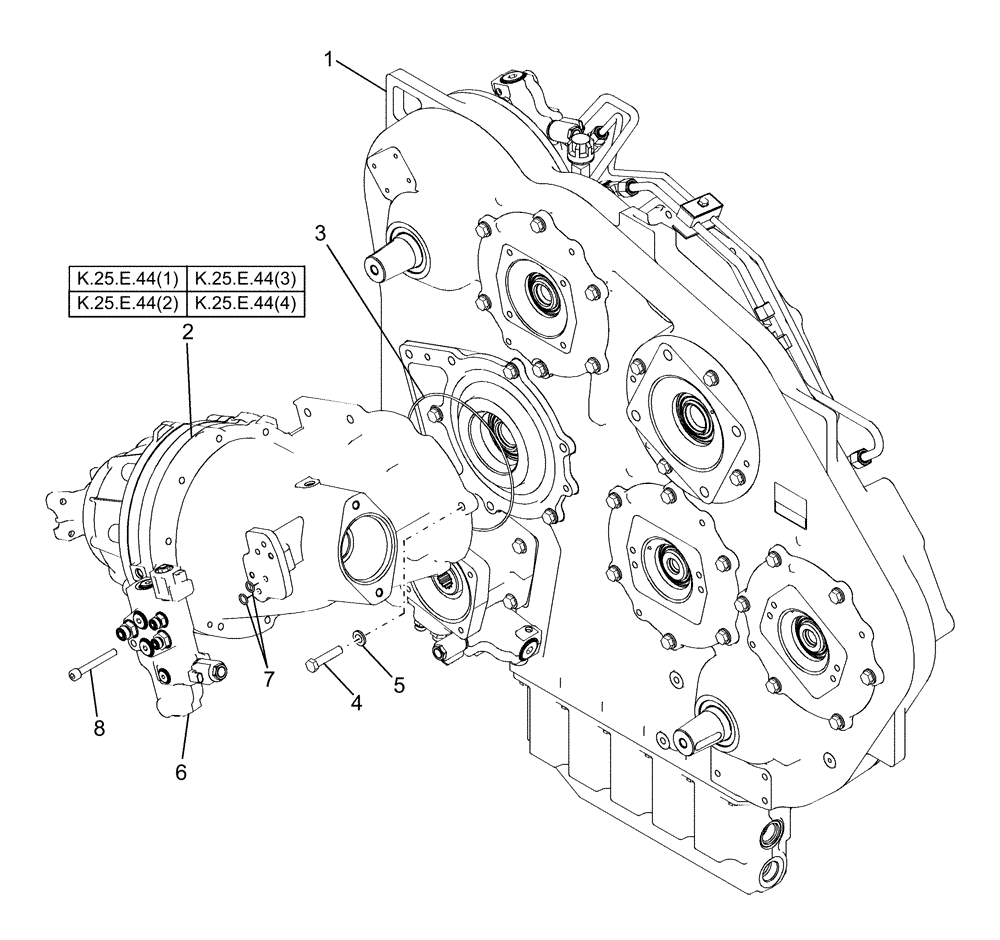

Запчасти Case IH AFX8010 (C.10.B.42) - GEARBOX, FEEDER / HEADER, W/PTO C - Power Train

1

87281163

PTO

Feeder / Header PTO

1шт.

1

87281163R

REMAN-PTO GEARBOX A.

Feeder / Header PTO

1шт.

1

87281163C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

86998844

GEARBOX

Variable Speed, Feeder / Header

1шт.

2

86998844R

REMAN-TRANSMISSION

Variable Speed, Feeder / Header

1шт.

2

86998844C

CORE-TRANSMISSION

Return number

1шт.

2

86998845

GEARBOX

Fixed Speed, Feeder / Header

1шт.

2

86998845R

REMAN-TRANSMISSION

Fixed Speed, Feeder / Header

1шт.

2

86998845C

CORE-TRANSMISSION

Return Number

1шт.

3

238-5269

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

4

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

5шт.

5

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

6

86981235

CONTROL VALVE

Variable Speed, Feeder / Header

1шт.

6

87447038

CONTROL VALVE

Fixed Speed, Feeder / Header

1шт.

7

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

8

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.
