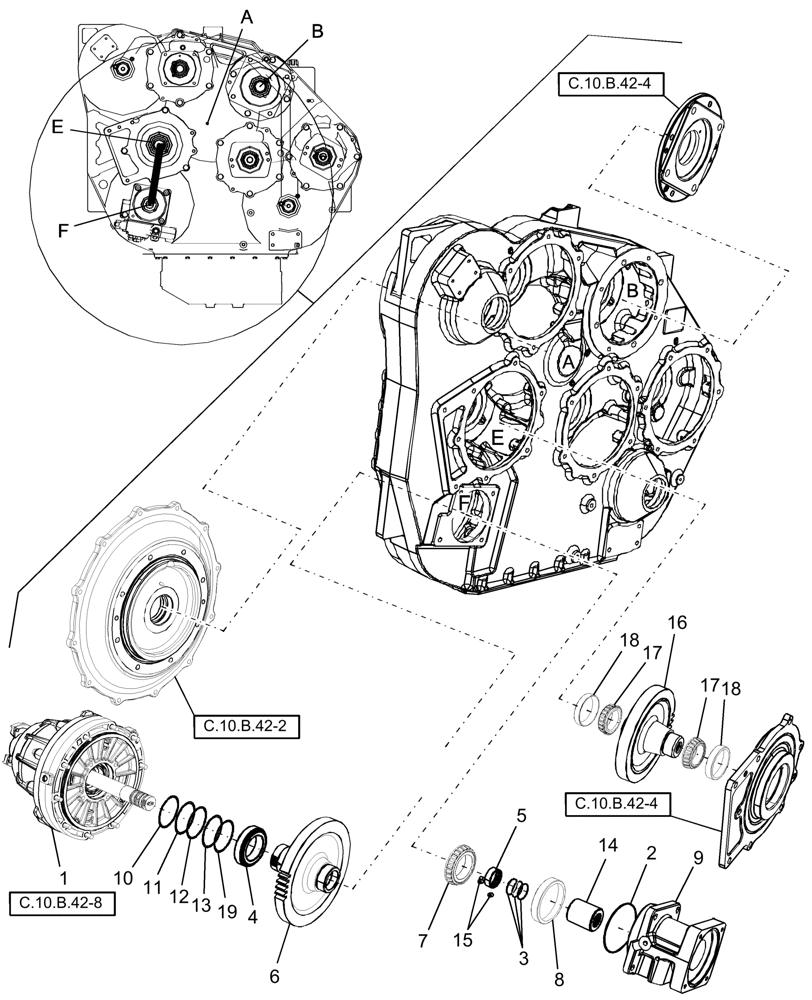

Запчасти Case IH AFX8010 (C.10.B.42[9]) - PTO, ROTOR VARIATOR ASSY., ENGINE GEARBOX C - Power Train

1

86998846

VARIATOR

Variator, Rotor

1шт.

86998846R

REMAN-GEARBOX

AFX8010 P.I.N. HAJ105105 Thru HAJ199999,

1шт.

86998846C

CORE-GEARBOX

Return Number

1шт.

2

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

3

87587474

SEALING RING

SEALRING

3шт.

4

86998145

BEARING ASSY,65mm ID x 100mm OD x 23mm W

1шт.

5

86996784

NEEDLE BEARING,39.99mm ID x 46.98mm OD x 15.85mm W

1шт.

6

86975206

GEAR

Rotor Drive, 57T

1шт.

7

227488A1

ROLLER BEARING,63.5mm ID x 22mm W

1шт.

8

29214H

BEARING CUP,110mm OD x 18.82mm W

1шт.

9

397700A1

PROTECTIVE SLEEVE

1шт.

10

359242A1

SHIM,0.1mm Thk

(0.004")

1шт.

11

359243A1

SHIM,0.15mm Thk

(0.006")

1шт.

12

359244A1

SHIM,0.3mm Thk

(0.012")

1шт.

13

359251A1

SHIM,0.5mm Thk

(0.020")

1шт.

14

399972A3

HUB,14T / 25T

Hydraulic Motor Drive

1шт.

15

87520607

PLUG

Expansion, 9 mm - Was 1345887C1

3шт.

16

86975205

GEAR

51T

1шт.

17

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

18

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

19

87282628

SHIM,87mm ID x 98mm OD x 0.13mm Thk

Shim

1шт.
