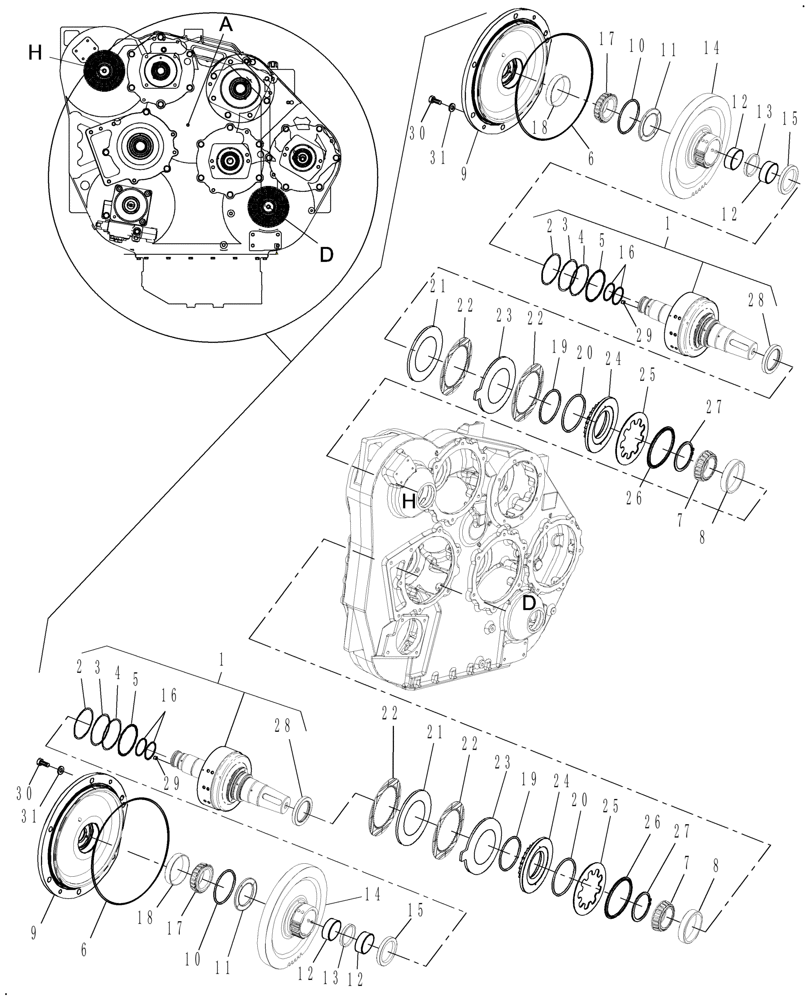

Запчасти Case IH AFX8010 (C.10.B.42[5]) - PTO, CLUTCHES & VALVES, ENGINE GEARBOX C - Power Train

1

87325136

CLUTCH OVERHAUL KIT

Shaft & Clutch Housing Assembly; For Further Component Breakdown, See Fig. C.10.B.42[6]

2шт.

Four Friction Plates

1шт.

1

87737569

SERVICE KIT

Kit; Shaft & Clutch Housing Assembly; For Further Component Breakdown, See Fig. C.10.B.42[16]

1шт.

Six Friction Plates

1шт.

Service Only; Can Be Used To Replace Four-Plate Production Beater/Chopper Drive Clutch

1шт.

2

378154A1

SHIM,0.127mm Thk

1шт.

3

378155A1

SHIM,0.178mm Thk

1шт.

4

378156A1

SHIM,0.203mm Thk

1шт.

5

378157A1

SHIM,0.508mm Thk

1шт.

6

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

2шт.

7

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

2шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

2шт.

9

87105122

COVER

2шт.

10

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

4шт.

11

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

4шт.

12

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

4шт.

13

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

Inner

2шт.

14

87105111

GEAR

PTO Clutch, 60T

2шт.

15

257277A1

SEALING RING,Locking, 79.8mm ID x 89.2mm OD x 3.5mm Thk

SEALRING Clutch Lube

2шт.

16

87587474

SEALING RING

SEALRING

4шт.

17

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

2шт.

18

130503H

BEARING CUP

2шт.

19

87105115

SEALING RING,64.77mm ID x 70mm OD x 2.62mm Thk

SEALRING

2шт.

20

87105116

SEALING RING,82.22mm ID x 87.45mm OD x 2.62mm Thk

SEALRING

2шт.

21

87105109

CLUTCH PLATE,105mm ID x 141mm OD x 7mm Thk

2шт.

22

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Friction, Shift Clutch

4шт.

23

87108318

PLATE

Piloted - Raised Outer Lip - For 7 Prebuild Units Only, Serial Range: -HAJ105205

2шт.

23

87109365

PLATE

Flat, Start Serial: HAJ105206

2шт.

24

87105676

PISTON

2шт.

25

87105113

SPRING

Disc

2шт.

26

87105114

RING

2шт.

27

800-1170

SNAP RING,M70, Ext

2шт.

28

619585C91

SEAL,51.94mm ID x 76.33mm OD x 9.5mm Thk

Lip

2шт.

29

1345887C1

PLUG

Expansion, 9 mm

2шт.

30

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

31

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.
