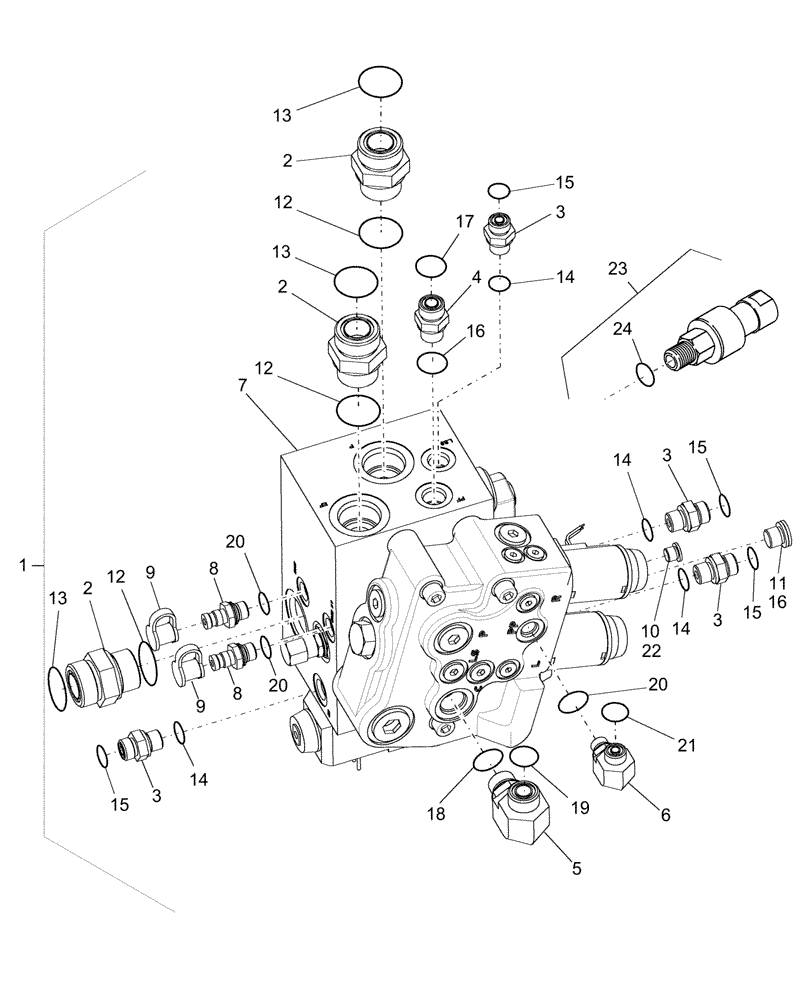

Запчасти Case IH AFX8010 (A.10.A.18[4]) - VALVE, HYDRAULIC - MAIN STACK A - Distribution Systems

1

0C

ORDER COMPONENTS

Main Stack

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

3шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

4шт.

4

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

5

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

6

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

7

87109738

VALVE

For Component Breakdown, Refer To Fig. A.10.A.18[5]

1шт.

8

84320565

COUPLING,M14 x 1.5

2шт.

9

86502604

DUST CAP

2шт.

10

86529630

PLUG,Hex Soc, 3/8"-24 ORB

1шт.

11

86598046

PLUG,M18 x 1.5 ORB

1шт.

12

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

14

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

4шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

16

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

23

86975430

SENSOR

Header Height Lift Cylinder Pressure, Includes Ref. 24

1шт.

24

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.
