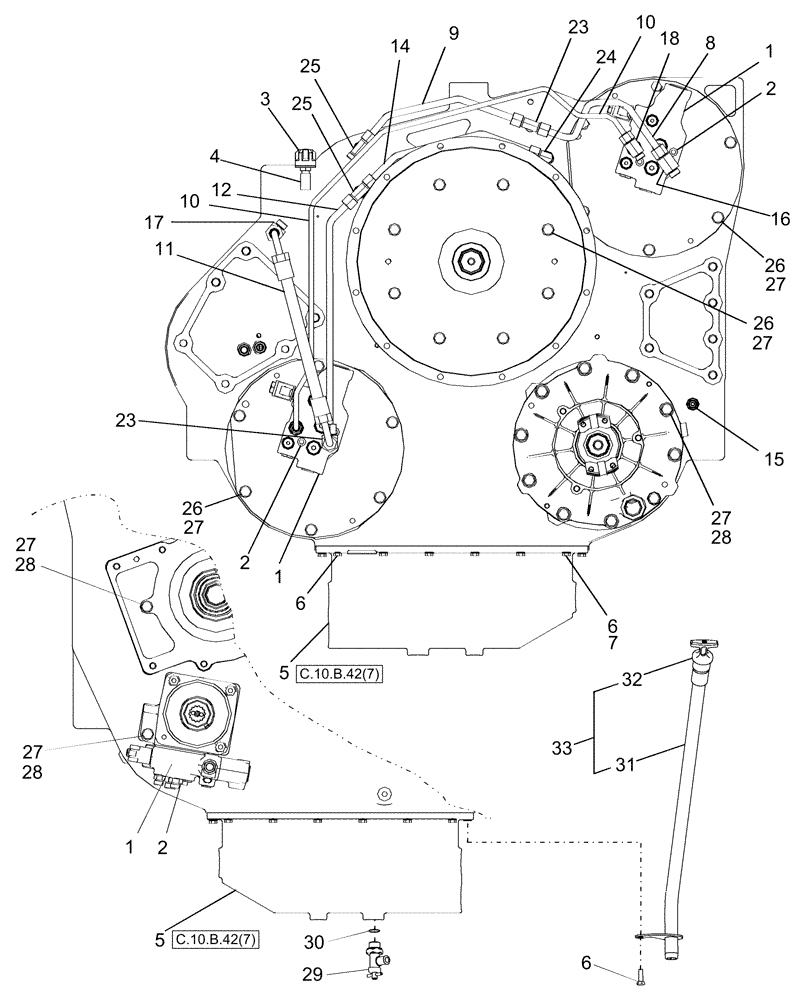

Запчасти Case IH AFX8010 (C.10.B.42[1]) - PTO, VALVES & TUBES, ENGINE GEARBOX - PRIOR TO P.I.N. C - Power Train

1

86981234

HYDRAULIC VALVE

2шт.

2

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

4шт.

3

1971726C1

BREATHER,1/4" - 18

1шт.

4

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

5

87108616

PAN

PTO

1шт.

6

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

8

87108512

HYD TUBE,0.50" OD

Lube, To C7

1шт.

9

87108513

HYD TUBE,0.50" OD

Lube, To Second Spray Port

1шт.

10

87449002

TUBE,0.375" OD

Main Clutch Valve Supply

1шт.

11

87108883

HYD TUBE,0.50" OD

Lube, C9 To C2

1шт.

12

87108884

HYD TUBE,0.50" OD

Lube, C9 To C2

1шт.

13

87108885

HYD TUBE,0.50" OD

Lube, C9 To C2

1шт.

13

87449001

TUBE,0.5" OD

Lube, C2 To C9

1шт.

14

87108886

HYD TUBE,0.50" OD

Lube, C2 To C7

1шт.

14

87449000

TUBE,0.5" OD

Lube, C2 To C7

1шт.

15

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

16

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

17

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

18

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

19

1347127C1

PLATE

Hose Clamp

4шт.

20

410573A1

CLAMP

Tube

2шт.

21

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

23

87108509

FITTING

Orificed Tee

2шт.

24

87108510

FITTING

Orificed Elbow

1шт.

25

87108517

FITTING

Orificed Tee

2шт.

26

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

30шт.

27

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

30шт.

28

828-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

10шт.

29

87485712

DRAINCOCK/TAP SUPPLY

Draincock; Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

31

86999244

TUBE,1" OD

Engine Gearbox Dipstick

1шт.

32

86999027

DIPSTICK

1шт.

33

86975665

TUBE

Dipstick, Includes Ref. 31 & 32

1шт.

34

87281678

HYD TUBE,0.50" OD

Lube, C8 to C7

1шт.
