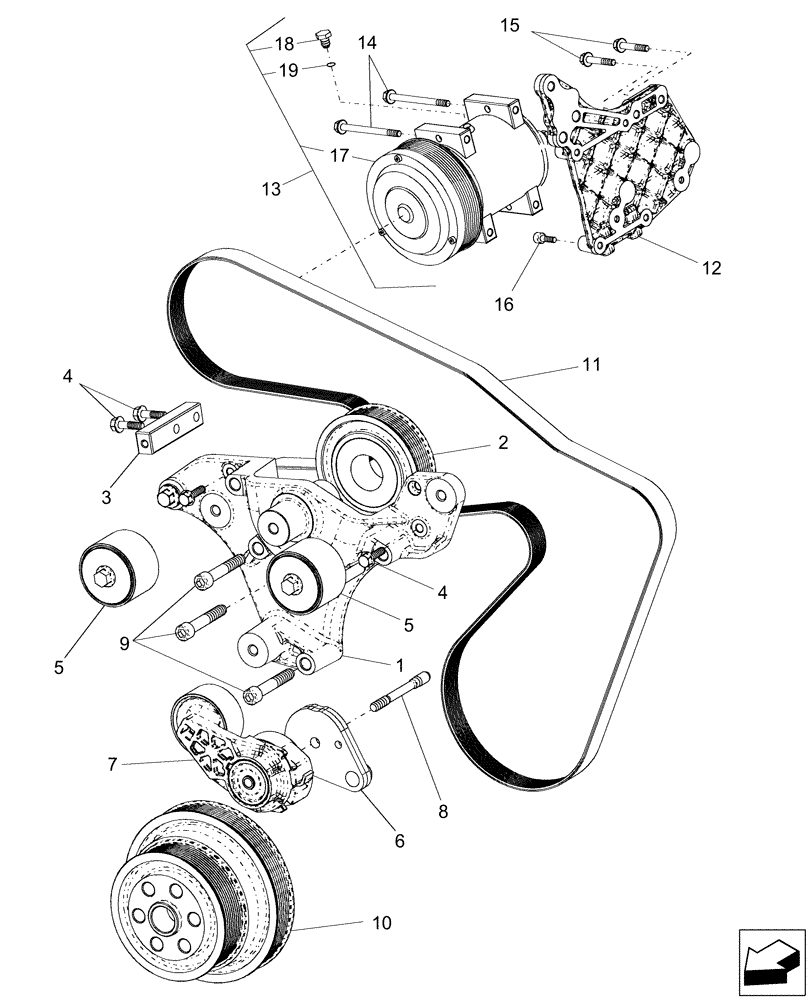

Запчасти Case IH AFX8010 (E.40.D.31) - A/C COMPRESSOR AND DRIVE B - Power Production

1

504078323

BODY

1шт.

2

504079721

PULLEY

Pulley

1шт.

3

504078628

SPACER

Brace

1шт.

3

504079738

SPACER

Tier 3, Start Serial: HAJ106401

1шт.

4

16673835

BOLT,Hex, M8 x 30mm

4шт.

5

504078065

IDLER

Pulley

2шт.

6

504079738

SPACER

1шт.

7

504078064

BELT TENSIONER

1шт.

8

504079727

STUD

1шт.

9

16711235

BOLT,M10 x 1.25 x 70mm

M12 x 1.75, 70 mm Long

4шт.

10

504077386

PULLEY

Drive

1шт.

10

504142482

PULLEY

Tier 3, Start Serial: HAJ106401

1шт.

11

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Drive

1шт.

For EU Only

1шт.

11

87282333

V-BELT,28.28 mm W x 2515.00 mm L

Drive

1шт.

For NA Only

1шт.

12

504078148

HOLDER

Support

1шт.

13

86993463

AIRCOND. COMPRESSOR

Includes Ref. 17, 18 & 19

1шт.

13

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

13

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, 6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

13

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

14

16598325

BOLT,Hex, M8 x 100mm

4шт.

15

16586525

BOLT,Hex, M8 x 30mm, Cl 8.8

2шт.

16

504080093

BOLT

M7x1.0x16mm

2шт.

17

403585A1

CLUTCH

1шт.

18

A49667

PLUG

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

20

42535660

KIT

Kit ( Ref. 13 ) - Tier 3, Start Serial: HAJ106401

1шт.
